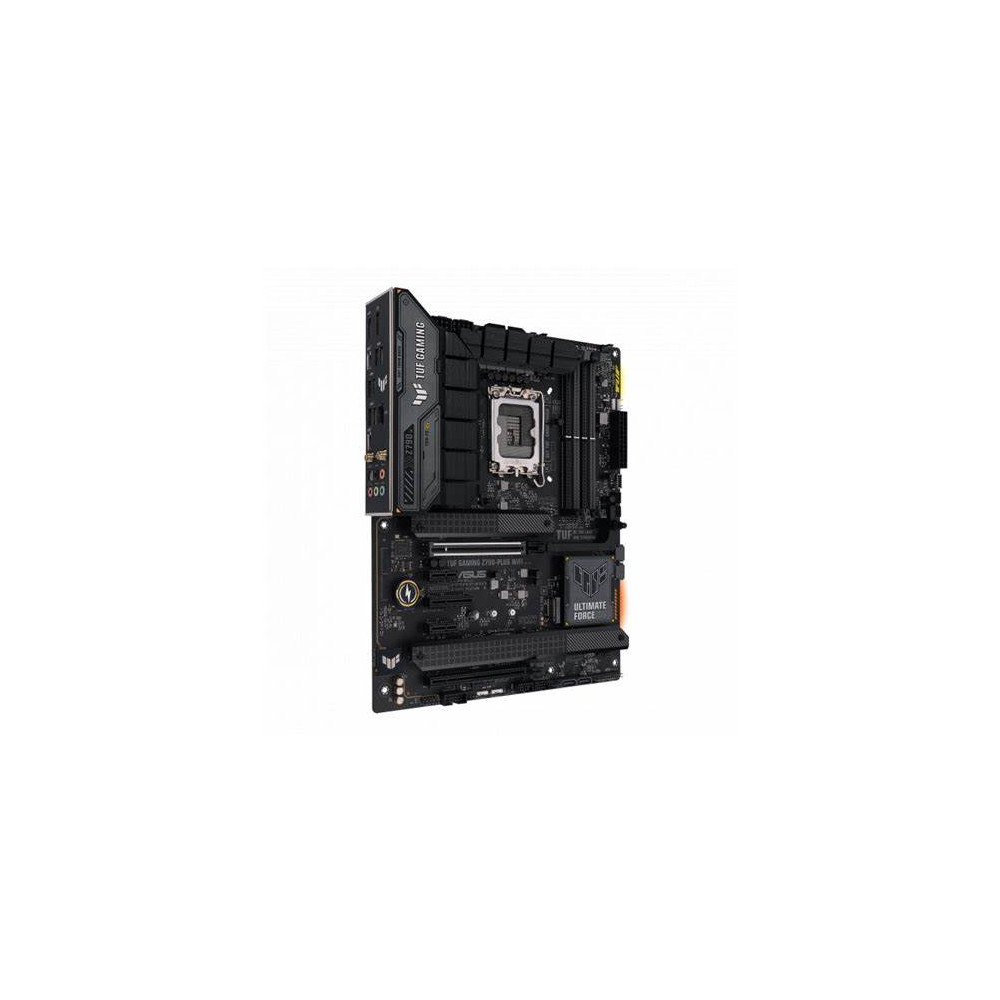

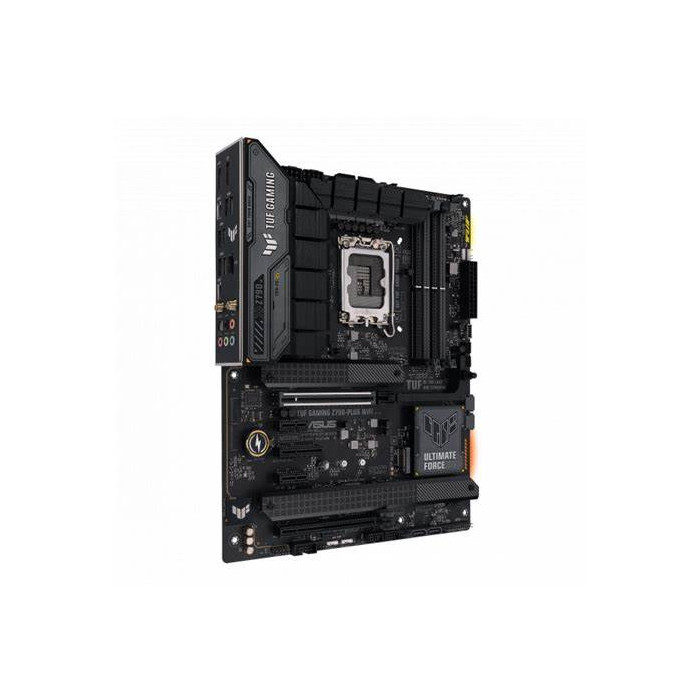

Scheda Madre ASUS TUF GAMING Z790-PLUS WIFI
Scheda tecnica
- Processore
- LGA 1700 (per CPU Intel della 12a/13a generazione di core)
- Chipset
- Intel Z790
- Memoria RAM
- 4x DDR5 (5.600 MHz, fino a 7.200 MHz tramite OC) Dual-Channel Max. 128 GB
- Slot Memoria
- 4x SATA 6G 1x M.2 (PCIe 4.0 x4,2242-22110,CPU) 1x M.2 (PCIe 4.0 x4,2242-2280,chipset) 1x M.2 (PCIe 4.0 x4,2242-22110,chipset) 1x M.2 (PCIe 4.0 x4 / SATA 6G,2242-2280,chipset)
- Connettività
- 1x RJ-45 (Intel I225-V, max. 2,5 Gbit /s) 2 antenne WLAN (Intel Wifi 6E, Bluetooth 5.2)
- Ingressi Video
- 1x DisplayPort 1.4 1x HDMI 2.1
- Uscita Audio
- 5x jack da 3,5 mm (Realtek ALC 4080)
- Porte e Connessioni
- 1x USB-C (un connettore, USB 3.2 Gen 2, max. 10 Gbit/s) 2x USB 3.0 (un connettore, USB 3.2 Gen 1, max. 5 Gbit/s) 4x USB 2.0 (due connettore, max. 480 Mbit/s)
- Porte I/O Frontali
- 1x USB 3.2 (tipo C, USB 3.2 Gen 2x2, max. 20 Gbit/s) 2x USB 3.1 (tipo A, USB 3.2 Gen 2, max. 10 Gbit/s) 1x USB 3.1 (tipo C, USB 3.2 Gen 2, max. 10 Gbit/s) 4x USB 3.0 (tipo A, USB 3.2 Gen 1, max. 5 Gbit/s)
