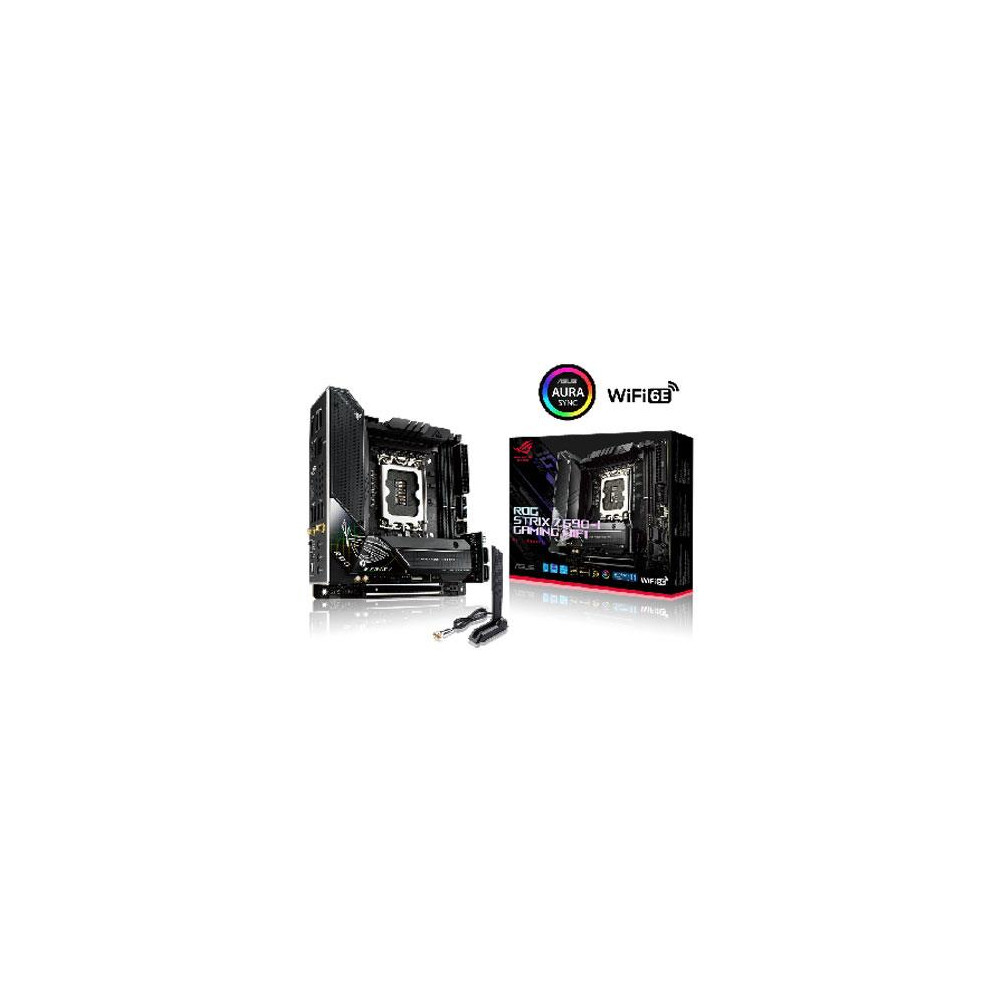

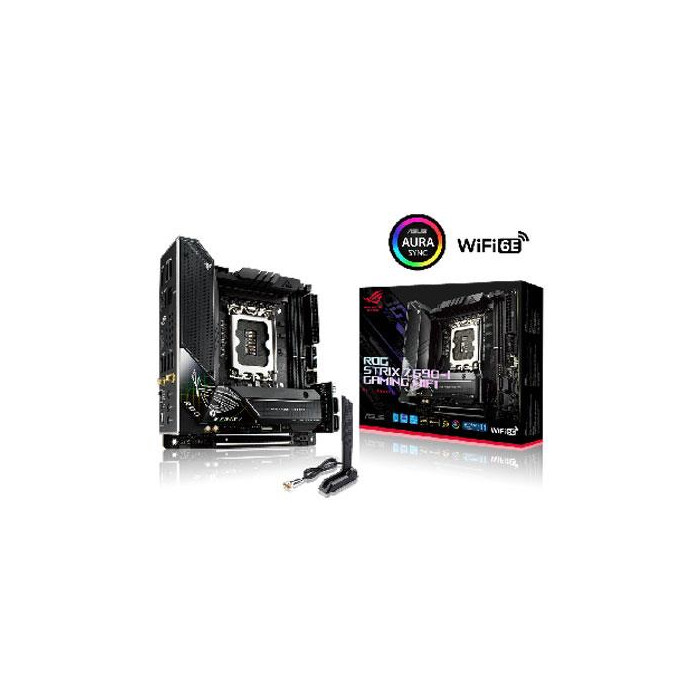

Scheda Madre ASUS ROG STRIX Z690-I GAMING WIFI

Scheda tecnica

Processore

Socket: LGA1700 - CPU Supportate: Intel Socket 1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors -

Chipset

Intel

Slot Memoria

2DDR5 (Dual Channel) - Massima supportata: 64GB - Frequenza: 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800 -

Connettività

LAN: 1 x Intel I225-V 2.5G Ethernet - WLan: Intel Wi-Fi 6E

Audio

SupremeFX - Codec: ALC4080 -

Porte e Connessioni

USB 3.2 Gen 2x2: 1 (1@front, 1 x Type-C) - USB 3.2 Gen 2: 2 (2@back, 2 x Type-A) - USB 3.2 Gen 1: 5 (3@back, 3 x Type-A + 2@front) - USB 2.0: 4 (2@back, 2 x Type-A - 2@front) - Thunderbolt: 2 x Thunderbolt 4 (onboard)

Altri Dettagli

AURA -AURA Sync -Armoury Crate -FlexKey -Q-Design -Q-Shield -Dual Intelligent Processors 5 with 5-Way Optimization with AI Overclocking -DIGI+ VRM -TPU -AI Suite3 -UEFI BIOS -EZ Flash 3 -Fan Xpert 4

Formato

Mini ITX

Slot VGA

1 x PCIe 5.0 x16 (x16 mode) -

Supporto HDD

4 x SATA 6Gb/s
