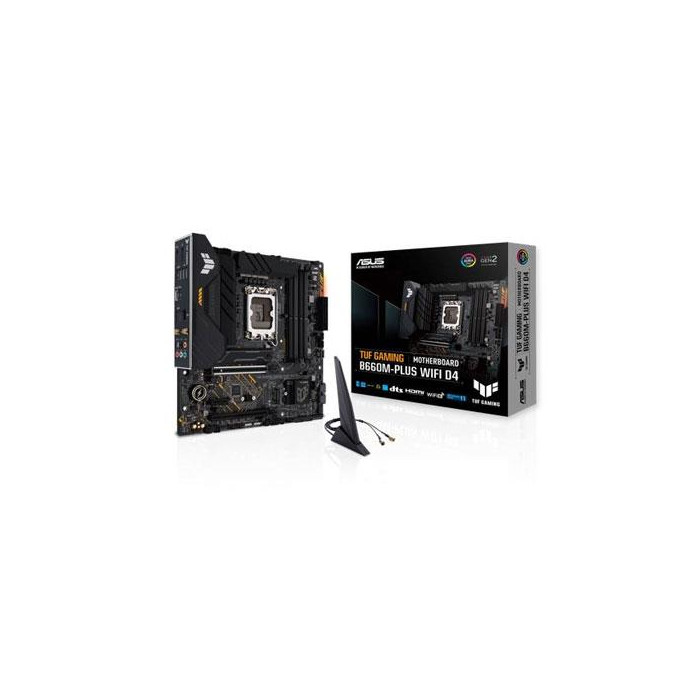

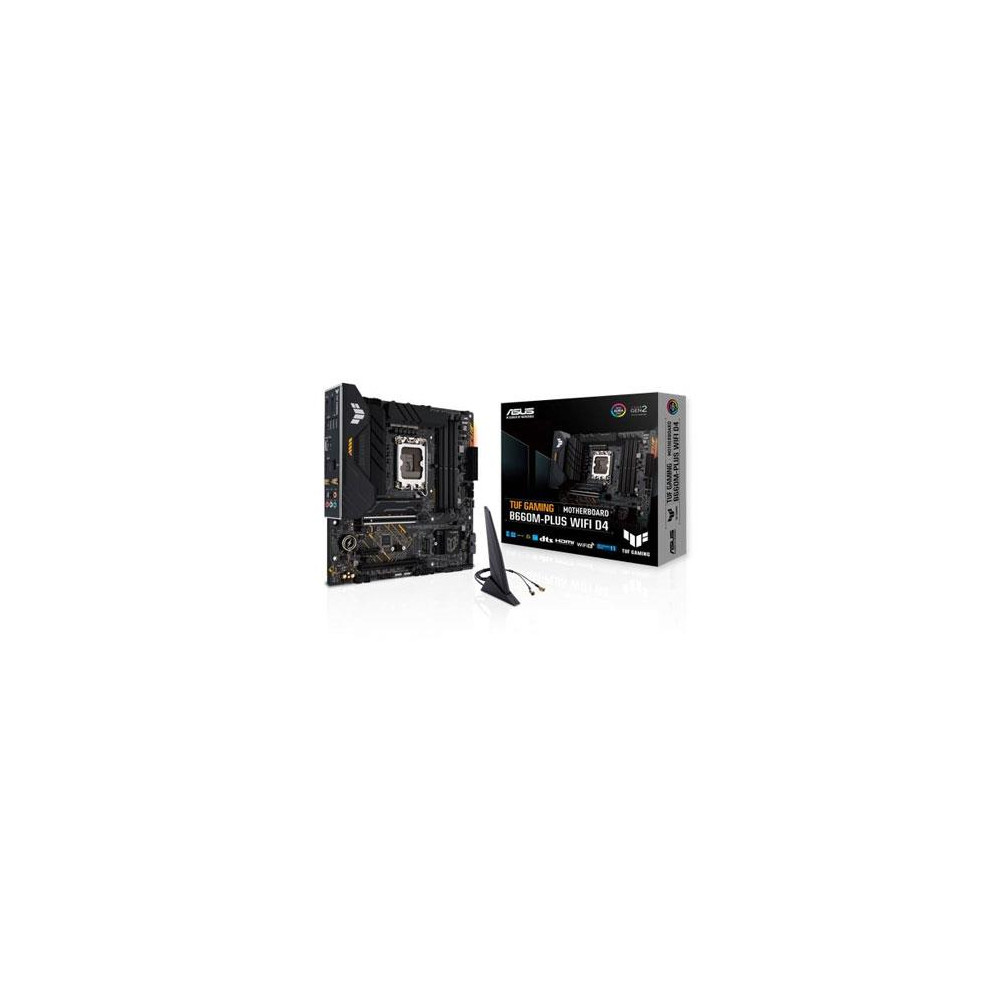

Scheda Madre ASUS TUF GAMING B660M-PLUS WIFI

Scheda tecnica

Processore

Socket: LGA1700 - CPU Supportate: Intel Socket 1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors -

Chipset

Intel

Slot Memoria

4DDR5 (Dual Channel) - Massima supportata: 128GB - Frequenza: 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800 -

Connettività

Realtek 2.5G -Intel Wi-Fi 6

Audio

7.1 Channel(HD) - Codec: Realtek Audio Codec -

Porte e Connessioni

Thunderbolt: 1 x Thunderbolt 4 header - USB 3.2 Gen 2x2: 1 (1@back, 1 x Type-C) - USB 3.2 Gen 2: 4 (4@back, 4 x Type-A) - USB 3.2 Gen 1: 4 (1@back - 3@front, 2 x Type-A + 1 x Type-C) - USB 2.0: 6 (2@back, 2 x Type-A - 4@front)

Altri Dettagli

ASUS CrashFree BIOS 3 -AURA -AURA Sync -Armoury Crate -Stylish Heat-sink -TurboV EVO -DIGI+ VRM -AI Suite3 -UEFI BIOS -Fan Xpert 2+ -EZ Flash 3 -ASUS SafeSlot -DTS Audio Processing -OPTIMEM II -MyAsus

Formato

microATX

Slot VGA

1 x PCIe 5.0/4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) -

Supporto HDD

4 x SATA 6Gb/s (RAID0,1,5,10)
