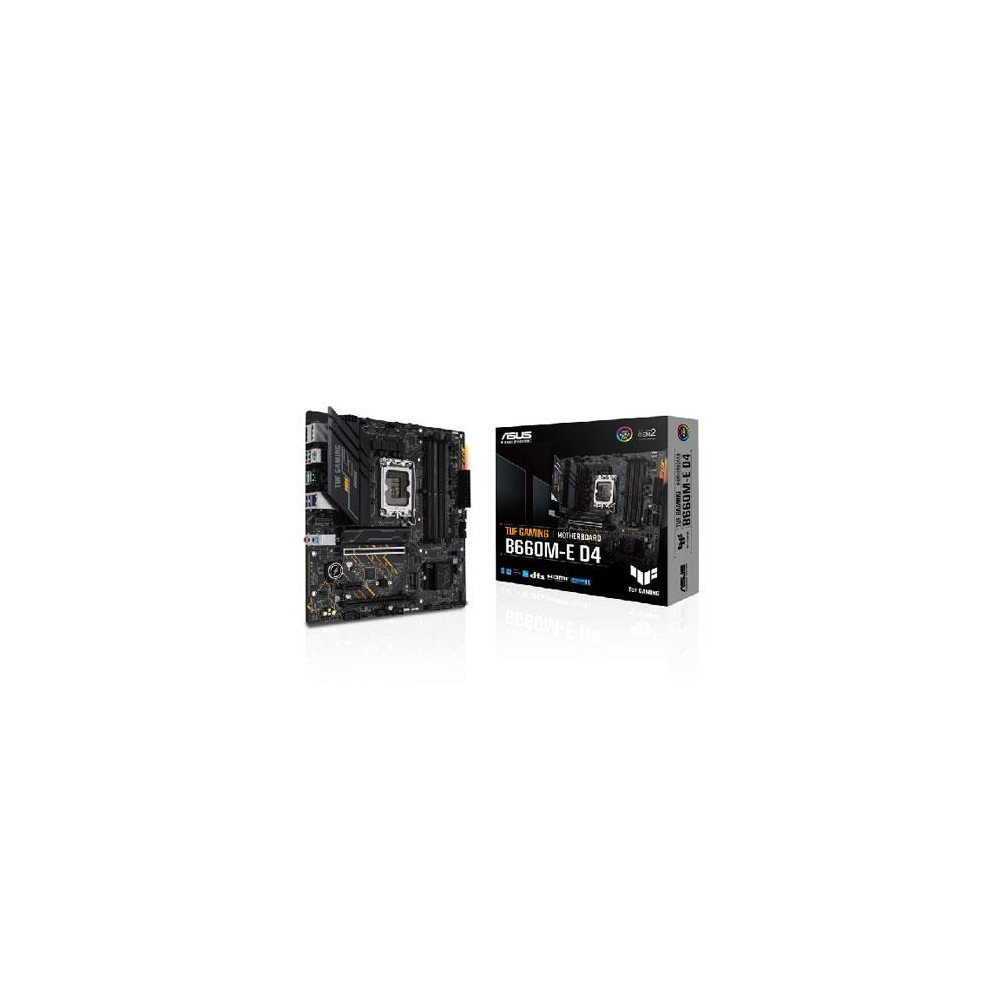

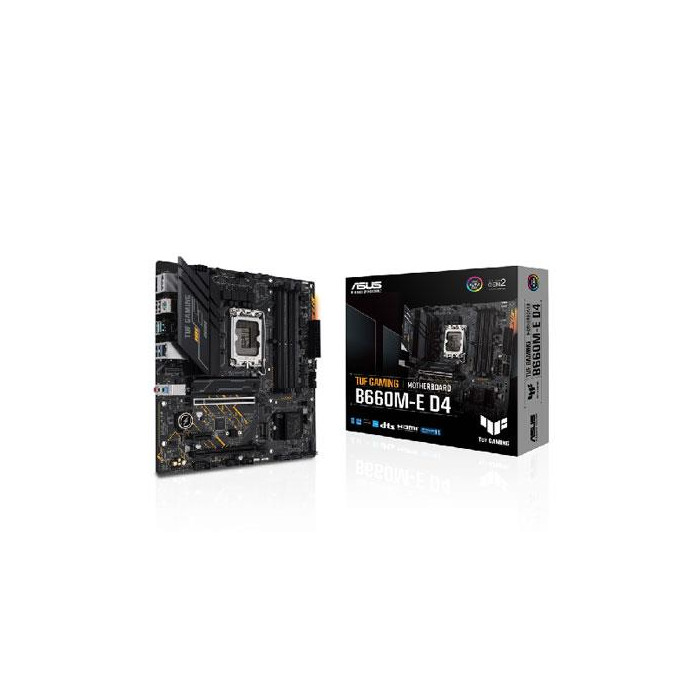

Scheda Madre ASUS TUF GAMING B660M-E D4
90MB19J0-M0EAY0
Scheda tecnica
- Processore
- Socket: LGA1700 - CPU Supportate: Intel Socket 1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors -
- Chipset
- Intel
- Slot Memoria
- 4DDR4 (Dual channel) - Massima supportata: 128GB - Frequenza: 5333(OC), 5000(OC), 4800(OC), 4600(OC), 4400(OC), 4266(OC), 4000(OC), 3733(OC), 3600(OC), 3466(OC), 3333(OC), 3200, 2933, 2800, 2666, 2400, 2133 -
- Connettività
- Gb Realtek -V-M.2 slot only (Key E, CNVi & PCIe)
- Audio
- 7.1 Channel(HD) - Codec: ALC897 -
- Porte e Connessioni
- Thunderbolt: N/A - USB 3.2 Gen 2x2: 0 - USB 3.2 Gen 2: 3 (2@back, 2 x Type-A - 1@front, 1 x Type-C) - USB 3.2 Gen 1: 4 (2@back, 2 x Type-A - 2@front) - USB 2.0: 6 (2@back, 2 x Type-A - 4@front)
- Altri Dettagli
- AI Charger -ASUS CrashFree BIOS 3 -ASUS MyLogo 2 -AURA Sync -Armoury Crate -Q-Design -Stylish Heat-sink -TurboV EVO -DIGI+ VRM -AI Suite3 -UEFI BIOS -Fan Xpert 2+ -Turbo LAN -EZ Flash 3 -DTS Custom for TUF GAMING Headphone -OPTIMEM II
- Formato
- microATX
- Slot VGA
- 1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4) -
- Supporto HDD
- 4 x SATA 6Gb/s (RAID0,1,5,10)
