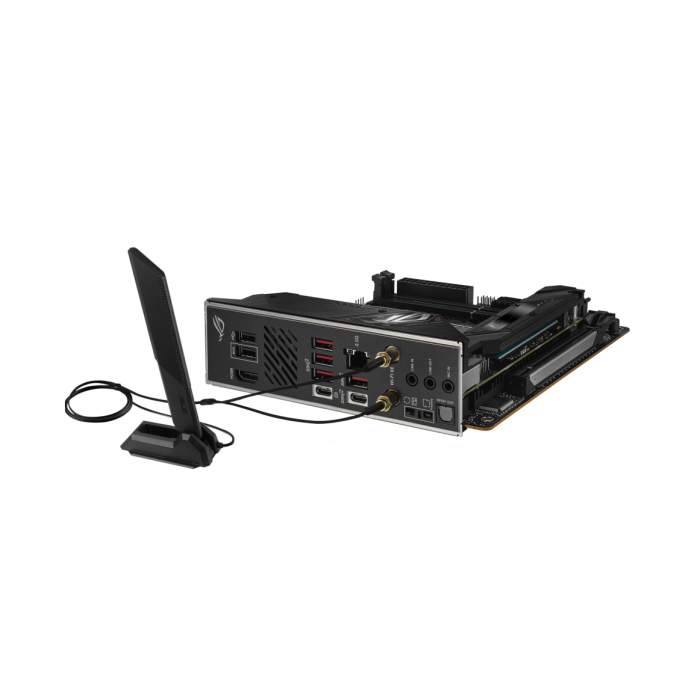

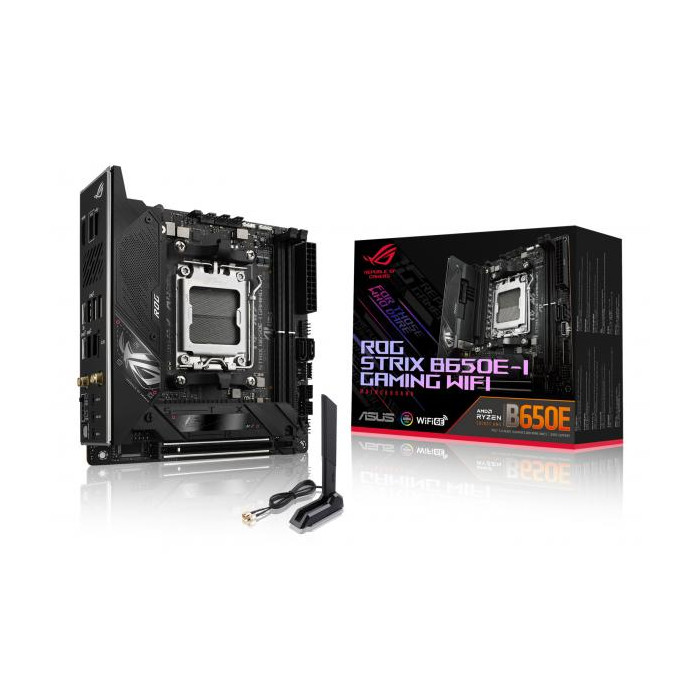

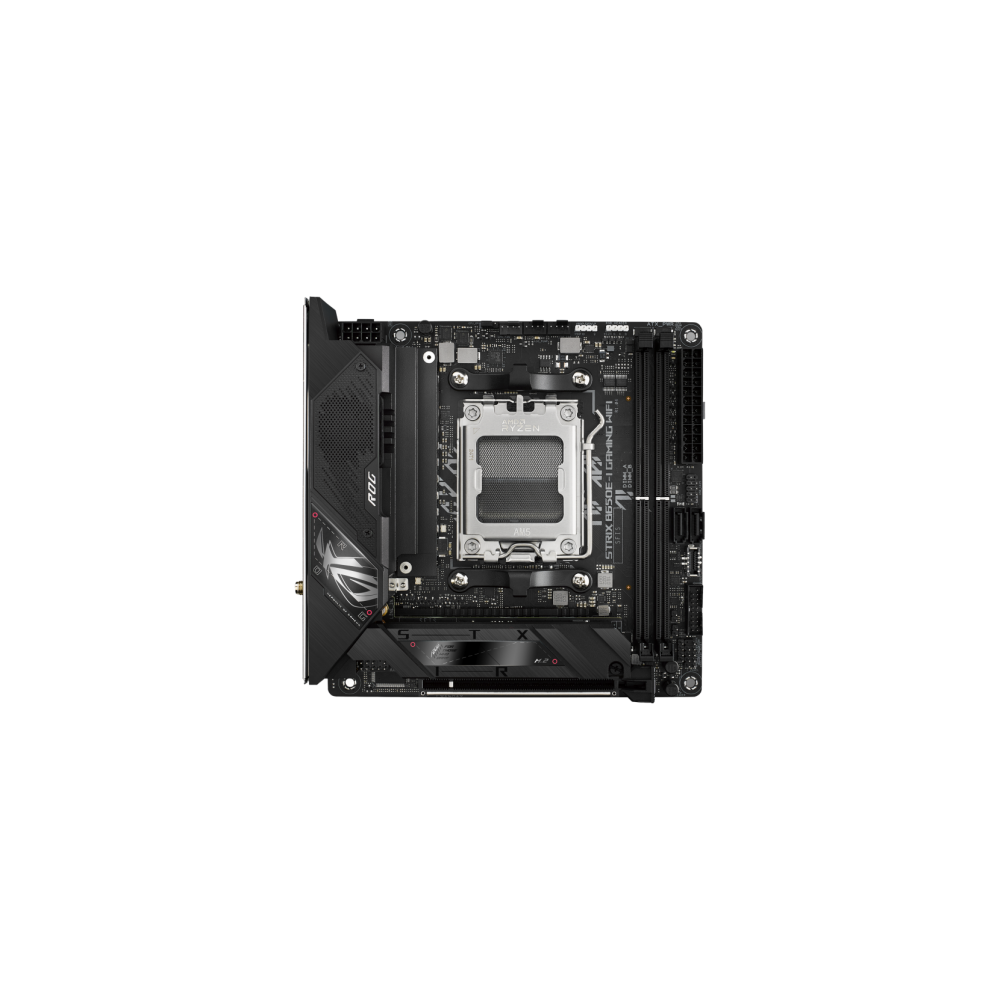

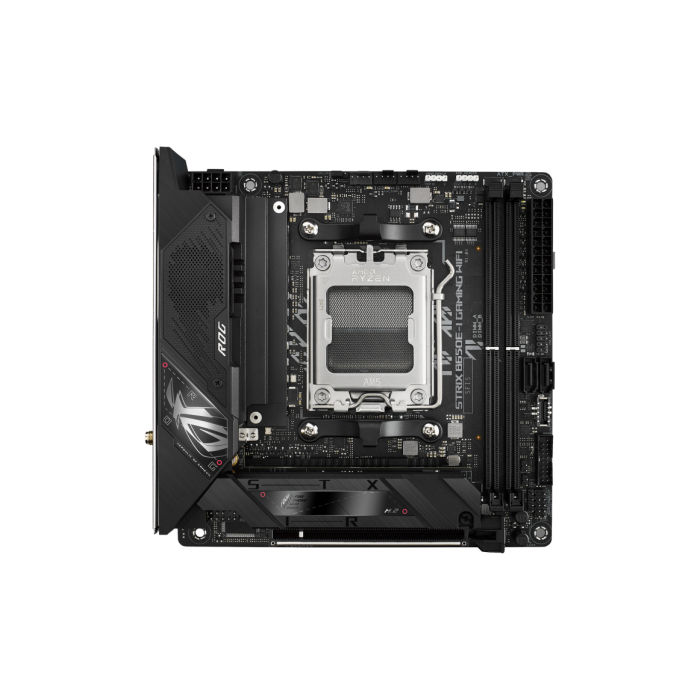

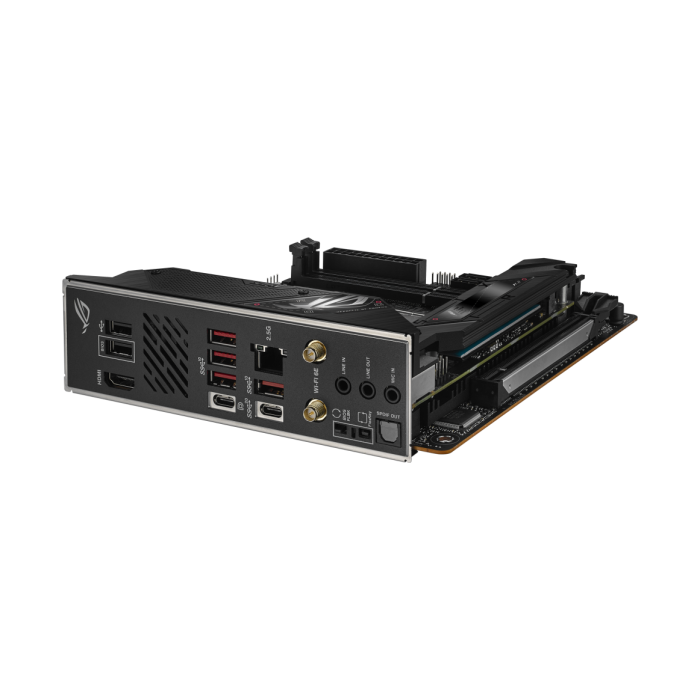

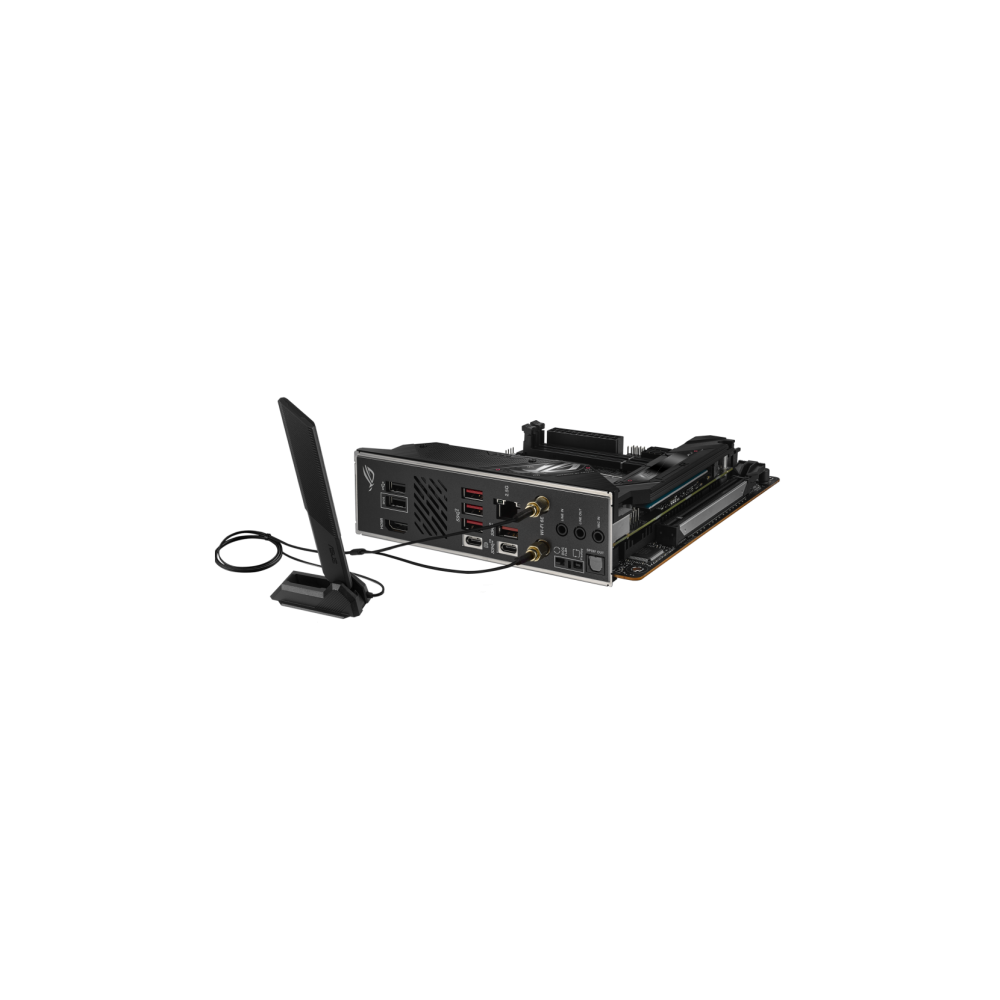

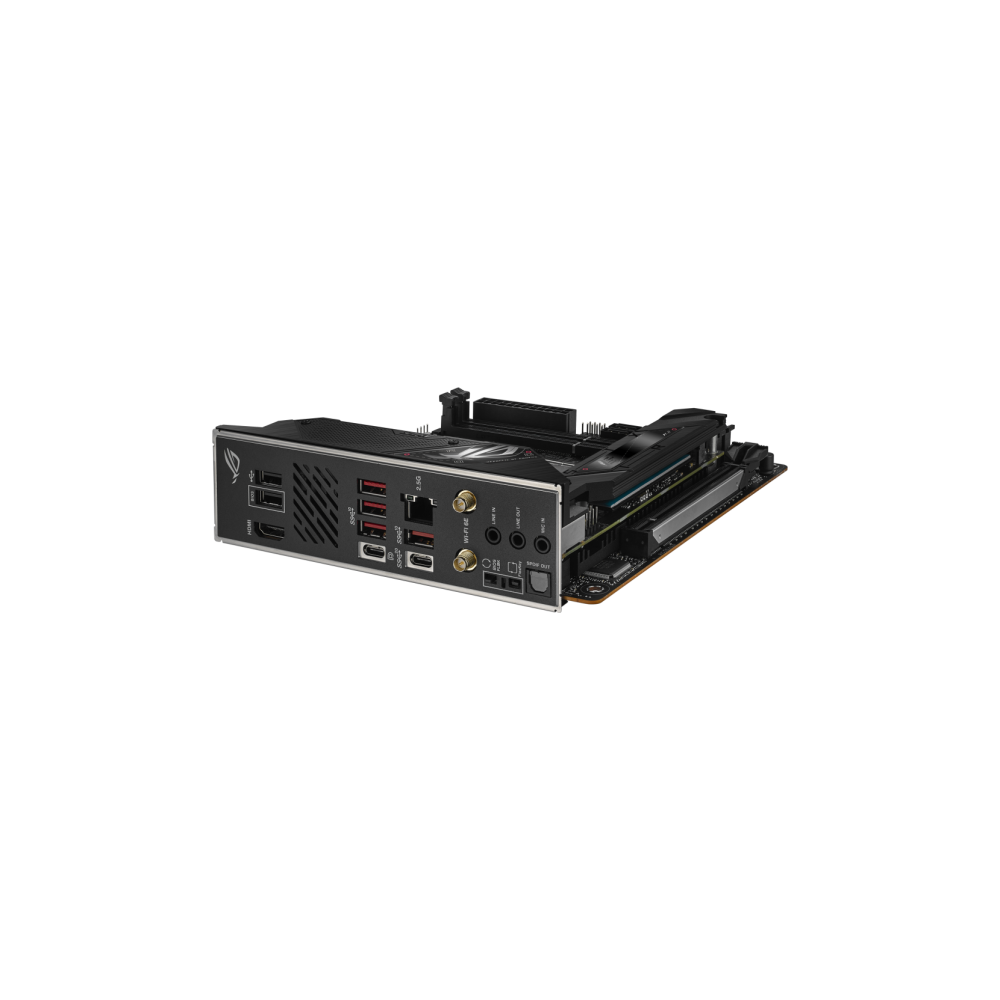

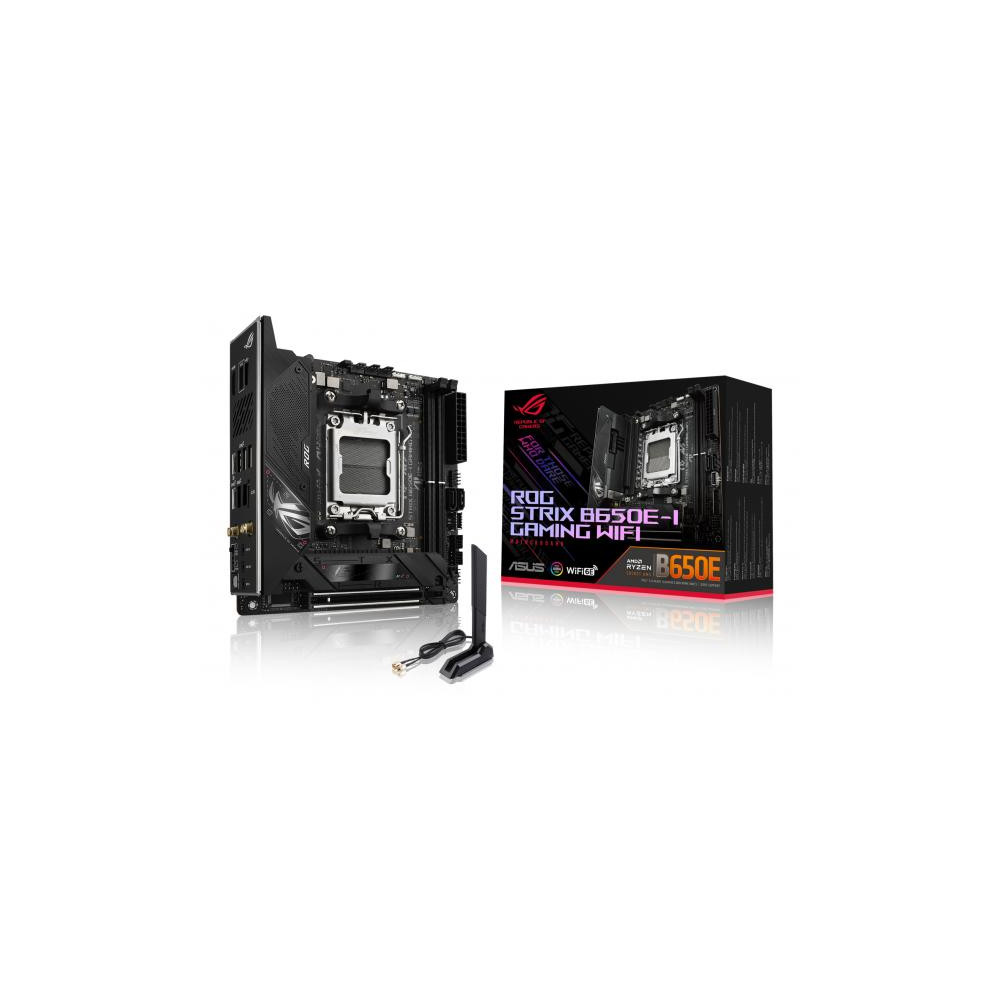

Scheda Madre Asus ROG STRIX B650E-I GAMING 90MB1BI0-M0EAY0
Tipo di interfaccia Ethernet | 2.5 Gigabit Ethernet |
Tipi di unità di archiviazione supportate | HDD & SSD |
Versione Bluetooth | 5.2 |
Connettori USB 2.0 | 2 |
Componente per | PC |
Connettore audio | Sì |
Connettori USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
Connettore pannello audio frontale | Sì |
Processori compatibili | AMD Ryzen™ 7 |
Profondità imballo | 182 mm |
Quantità porte HDMI | 1 |
Cavi inclusi | SATA, USB |
Connettore di potenza EPS (8-Pin) | Sì |
Velocità di memoria supportate | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
Ingresso di linea | Sì |
Uscite per cuffie | 1 |
Chipset scheda madre | AMD B650 |
Sistema audio | 7.1 canali |
Numero di connettori SATA II | 0 |
Famiglia di chipset per scheda madre | AMD |
Quantità di porte USB 3.2 Gen 2x2 Tipo C | 1 |
Numero di slot di M.2 (M) | 2 |
Dimensione memoria BIOS | 256 Mbit |
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A | 4 |
Canali di memoria | Dual-channel |
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo C | 1 |
Fattore di forma scheda madre | mini ITX |
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo C | 0 |
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A | 0 |
Wi-Fi standard | Wi-Fi 6E (802.11ax) |
tipo di slot di memoria | DIMM |
Quantità porte USB 2.0 | 2 |
Profondità | 170 mm |
Connettore ATX (24-PIN) | Sì |
Socket Processori supportati | Socket AM5 |
RAM massima supportata | 64 GB |
Tecnologia di processo parallela | Non supportato |
Larghezza imballo | 222 mm |
Quantità porte VGA (D-Sub) | 0 |
Bluetooth | Sì |
Quantità porte DVI-D | 0 |
Numero di connettori SATA | 0 |
Quantità porte Ethernet LAN (RJ-45) | 1 |
Numero di connettori ventola chassis | 1 |
Slot PCI Express x16 (Gen 5.x) | 1 |
Tasto di azzeramento CMOS | Sì |
Porta uscita S/PDIF | Sì |
Collegamento ethernet LAN | Sì |
Connettore LED RGB | Sì |
Produttore processore | AMD |
Connettore con potenza 12V | Sì |
Connettore ventola CPU | Sì |
Tipi di memoria supportati | DDR5-SDRAM |
Scheda grafica integrata | No |
quantità porte mSATA | 0 |
Sistema operativo Windows supportato | Windows 10 x64, Windows 11 x64 |
Standard Wi-Fi | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Colore del prodotto | Nero |
Chip audio | Realtek ALC4080 |
Tipo BIOS | UEFI AMI |
Wi-Fi | Sì |
Connettori USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
Numero di slot di memoria | 2 |
Senza buffer | Sì |
Larghezza | 170 mm |
Compatibilità ECC | ECC & Non-ECC |
Interfacce dell'unità di archiviazione supportate | M.2, SATA III |
Presa per processore | Socket AM5 |
Peso dell'imballo | 8,58 kg |
Numero di connettori SATA III | 2 |
Livelli RAID | 0, 1 |
Microfono, spinotto d'ingresso | Sì |
Supporto RAID | Sì |
Altezza imballo | 92 mm |
