Scheda Madre Asus ROG STRIX B860-A GAMING WIFI 90MB1JI0-M0EAY0

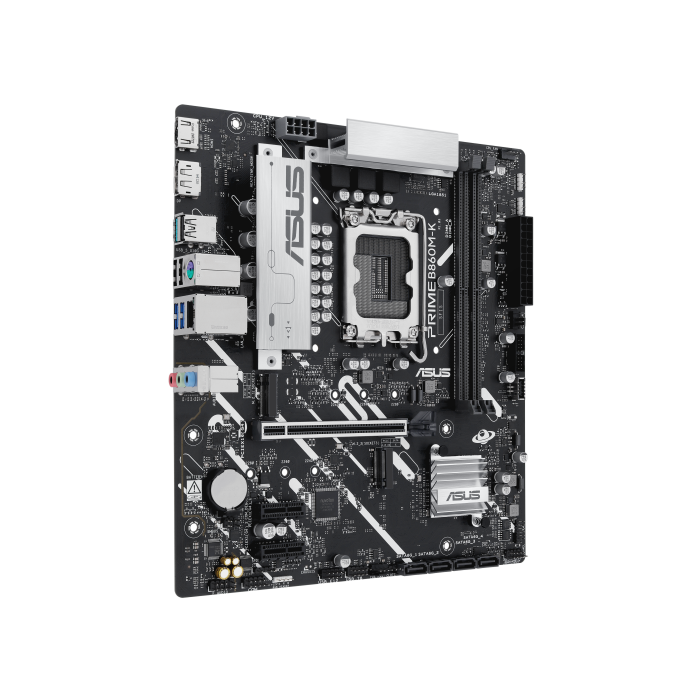

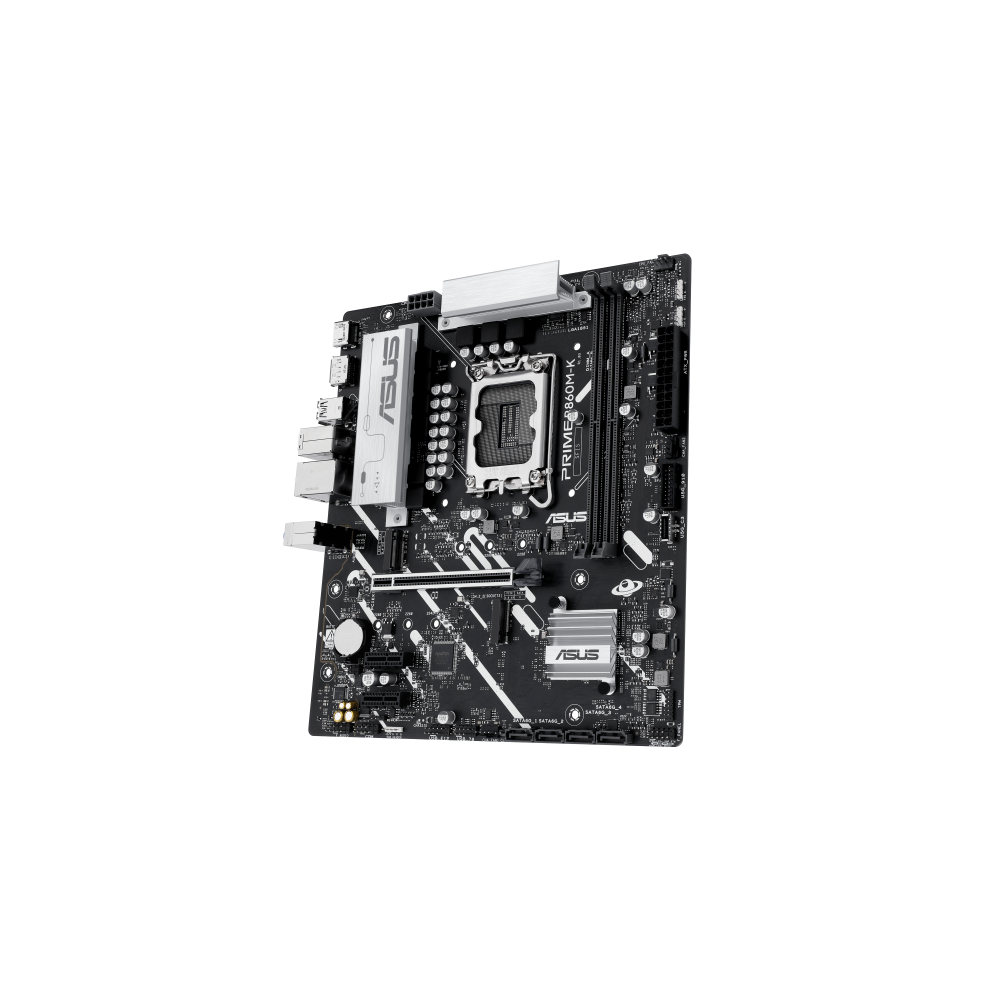

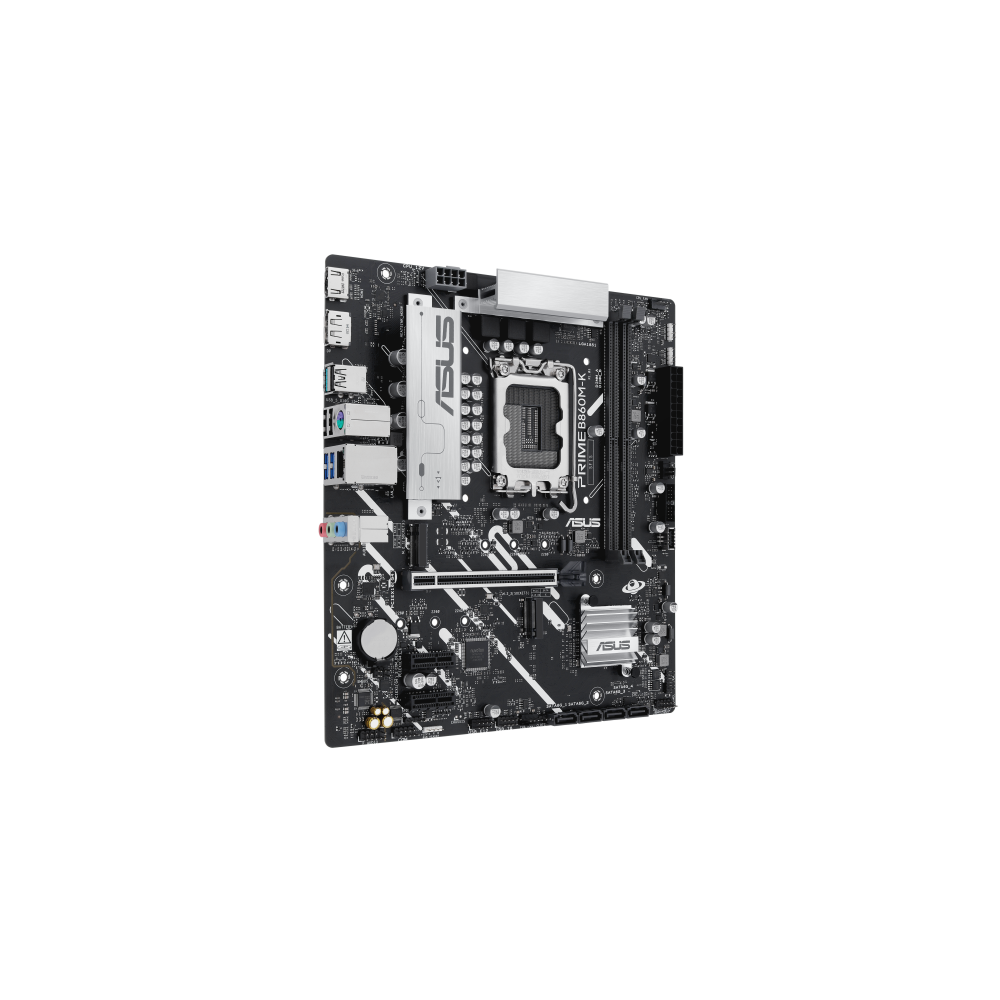

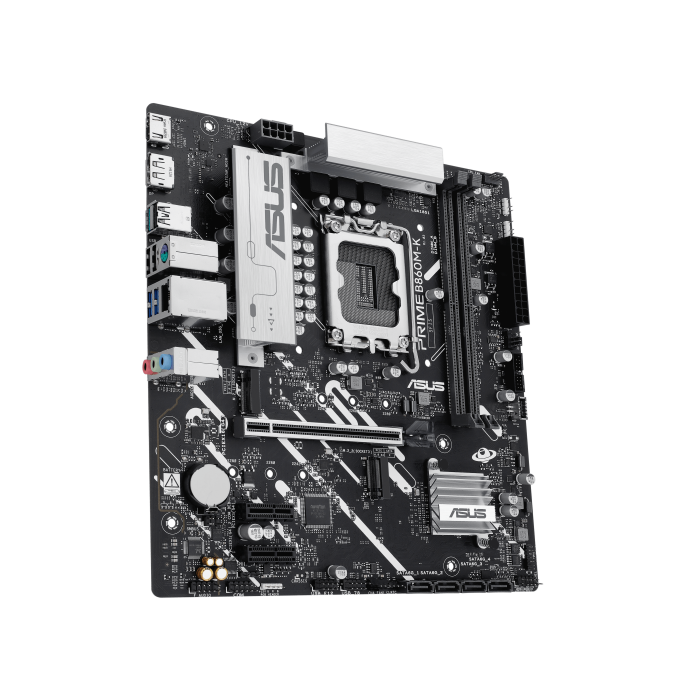

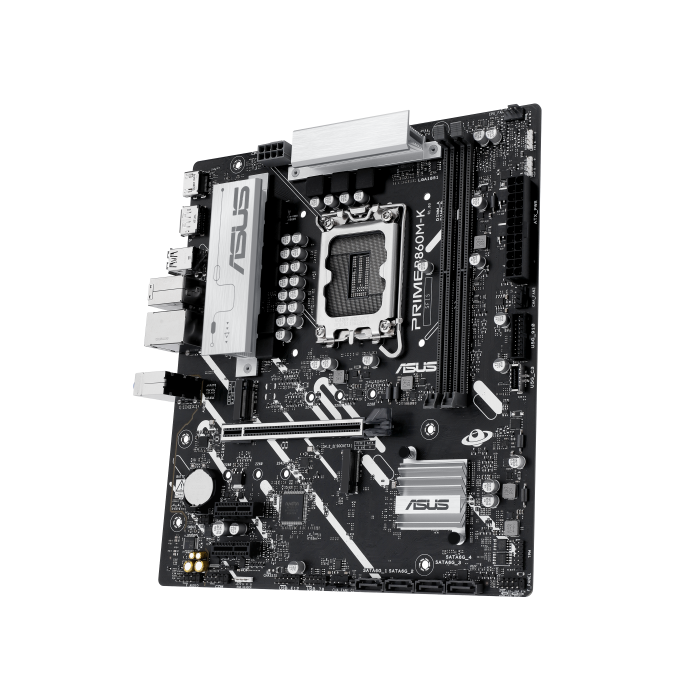

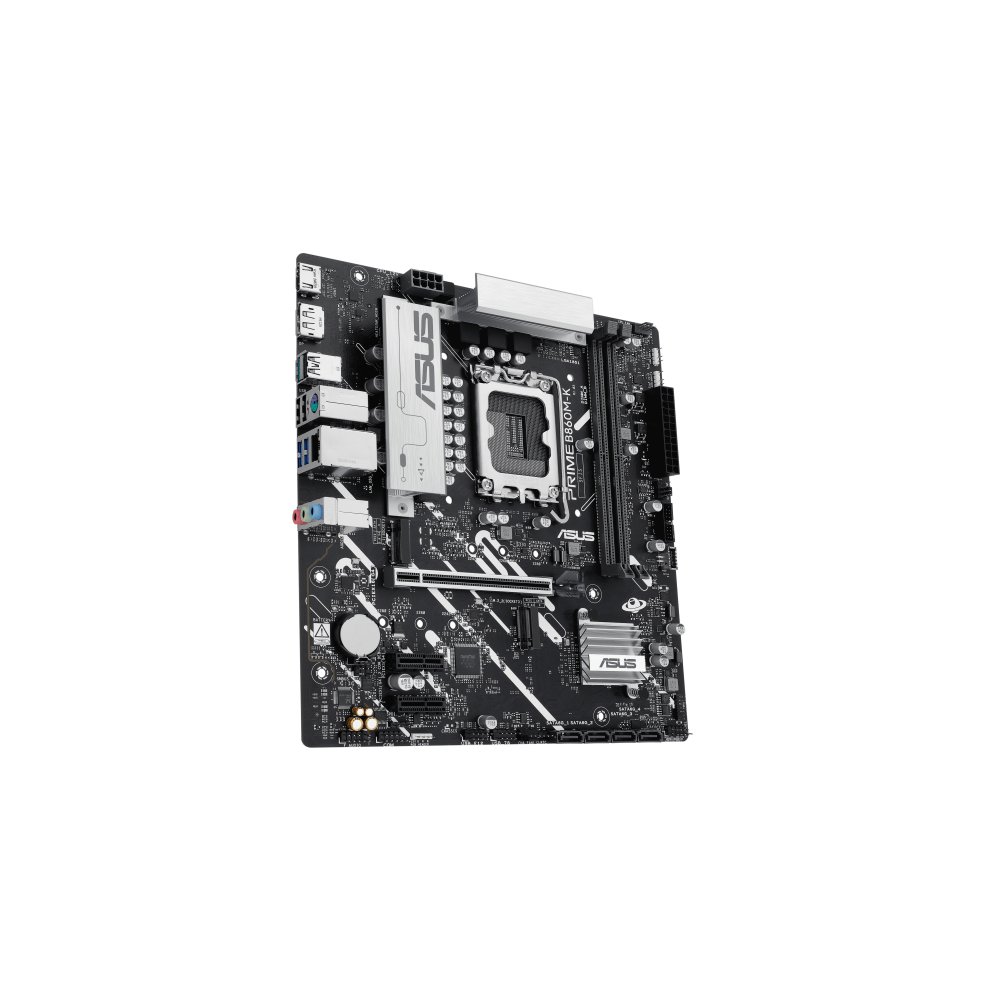

Scheda Madre Asus PRIME B860M-K 90MB1JT0-M0EAY0
Quantità porte PS/2 | 1 |
Tipo di interfaccia Ethernet | 2.5 Gigabit Ethernet |
Connettore uscita S/PDIF | Sì |
Tipi di unità di archiviazione supportate | HDD & SSD |
Connettori USB 2.0 | 2 |
Componente per | PC |
Connettori USB 3.2 Gen 2 (3.1 Gen 2) | 0 |
Slot PCI Express x1 (Gen 4.x) | 2 |
Connettore pannello audio frontale | Sì |
Processori compatibili | Intel Core Ultra (Series 2) |
Profondità imballo | 263 mm |
Quantità porte HDMI | 1 |
Cavi inclusi | SATA |
Generazione massima PCI Express del secondo M.2 | 4.0 |
Chipset scheda madre | Intel B860 |
Sistema audio | 7.1 canali |
Famiglia di chipset per scheda madre | Intel |
Slot PCI Express x16 (Gen 4.x) | 1 |
Numero di slot di M.2 (M) | 2 |
Dimensione memoria BIOS | 256 Mbit |
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A | 1 |
Connettore del pannello anteriore | Sì |
Canali di memoria | Dual-channel |
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo C | 0 |
Fattore di forma scheda madre | micro ATX |
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo C | 0 |
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A | 2 |
Generazione massima PCI Express del primo M.2 | 5.0 |
tipo di slot di memoria | DIMM |
Quantità porte USB 2.0 | 2 |
Dimensione massima del secondo connettore Key M.2 | 2280 |
Profondità | 222 mm |
Connettore ATX (24-PIN) | Sì |
Socket Processori supportati | LGA 1851 |
Numero di connettori COM | 1 |
RAM massima supportata | 128 GB |
Tecnologia di processo parallela | Non supportato |
Larghezza imballo | 270 mm |
Quantità porte VGA (D-Sub) | 0 |
Quantità porte DVI-D | 0 |
Quantità porte Ethernet LAN (RJ-45) | 1 |
Numero di connettori ventola chassis | 2 |
Collegamento ethernet LAN | Sì |
Connettore LED RGB | Sì |
Produttore processore | Intel |
Connettore con potenza 12V | Sì |
Numero di hard drive supportati | 4 |
Connettore ventola CPU | Sì |
Tipi di memoria supportati | DDR5-SDRAM |
Sistema operativo Windows supportato | Windows 10 x64, Windows 11 |
Quantità DisplayPorts | 1 |
Dimensione massima del primo connettore Key M.2 | 2280 |
Tipo BIOS | UEFI AMI |
Wi-Fi | No |
Connettori USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
Numero di slot di memoria | 2 |
Connettore TPM | Sì |
Senza buffer | Sì |
Larghezza | 244 mm |
Compatibilità ECC | Non-ECC |
Interfacce dell'unità di archiviazione supportate | M.2, SATA III |
Presa per processore | LGA 1851 (Socket V1) |
Peso dell'imballo | 1,07 kg |
Numero di connettori SATA III | 4 |
numero di dispositivi di archivio supportati | 6 |
Livelli RAID | 0, 1, 5, 10 |
Supporto RAID | Sì |
Altezza imballo | 51,5 mm |
