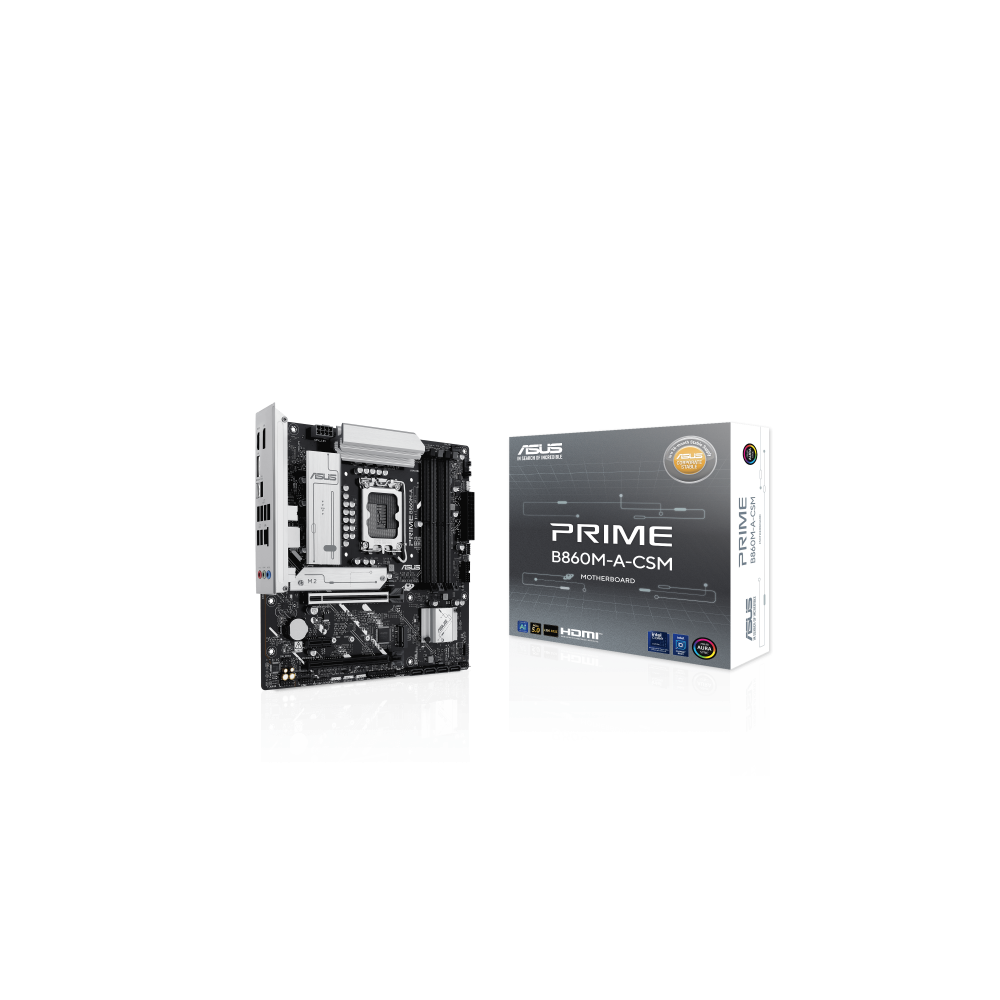

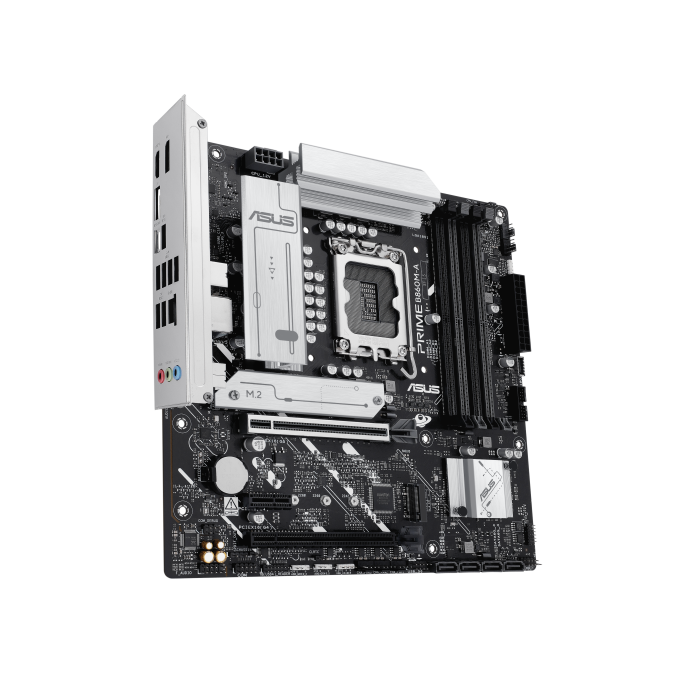

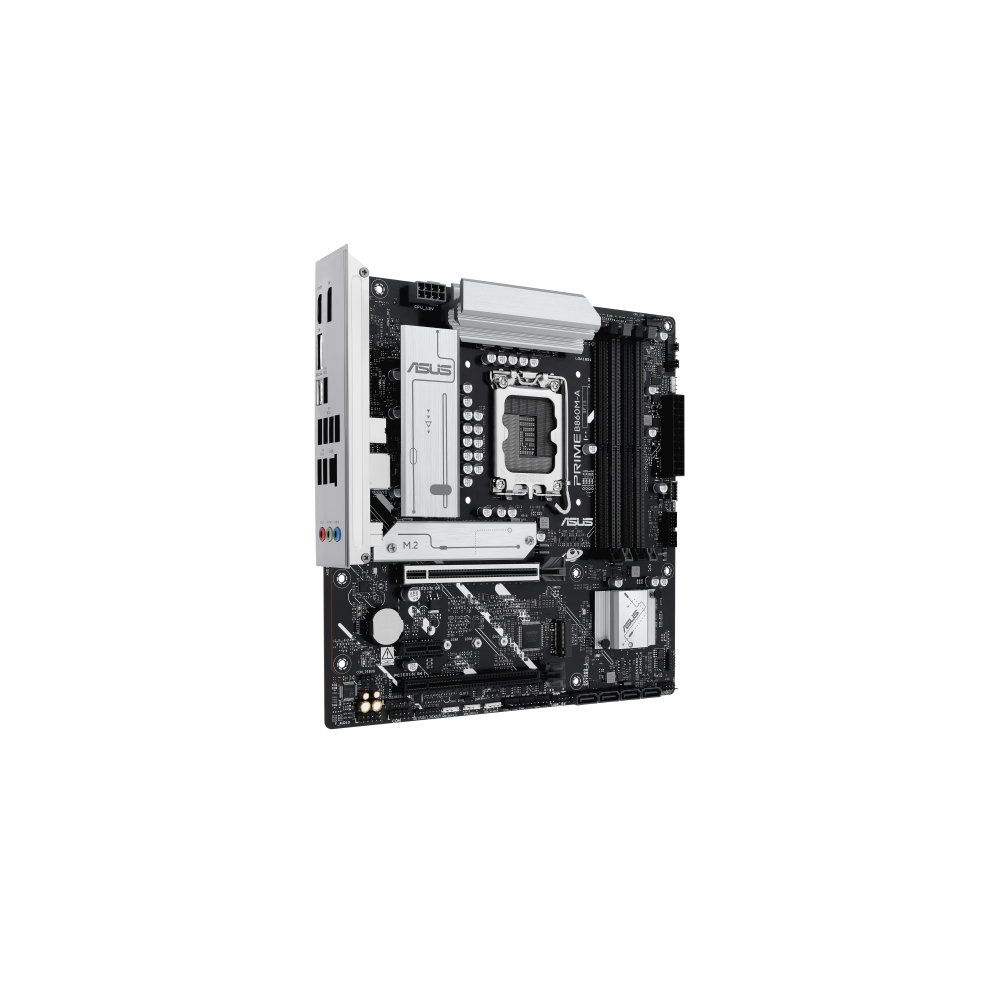

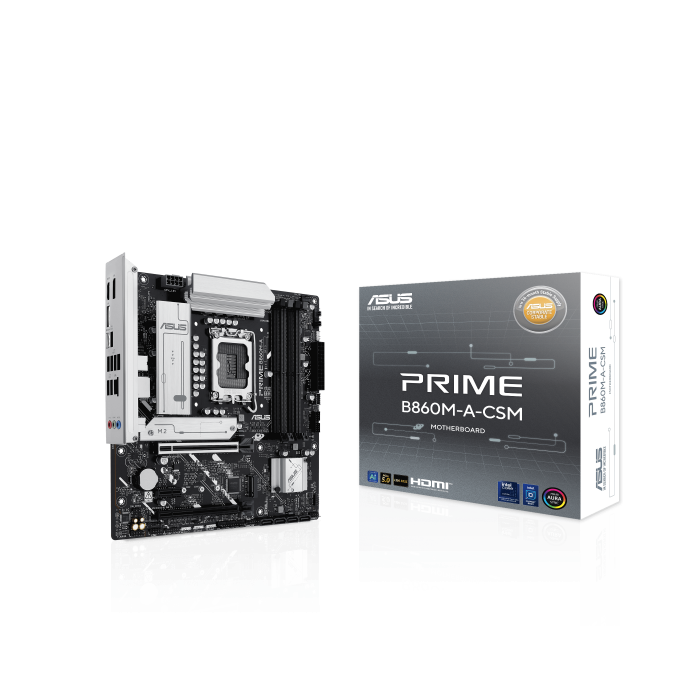

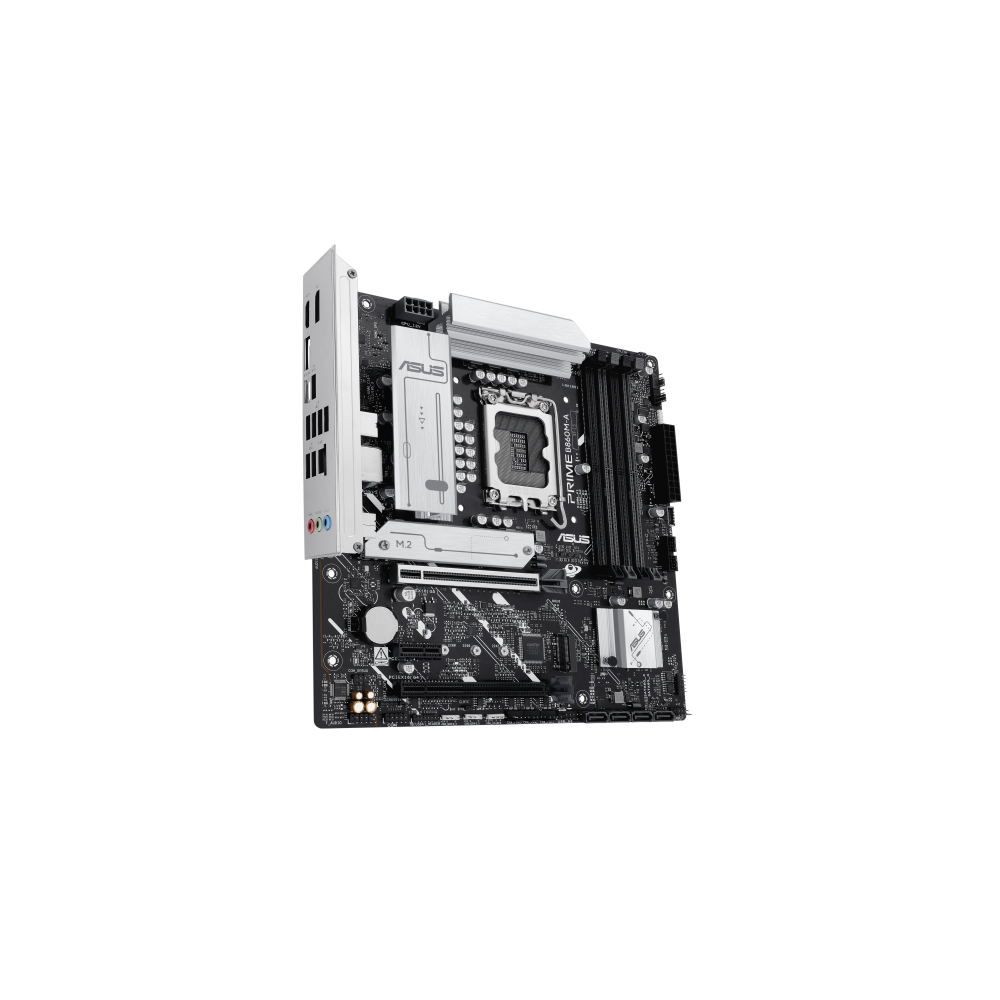

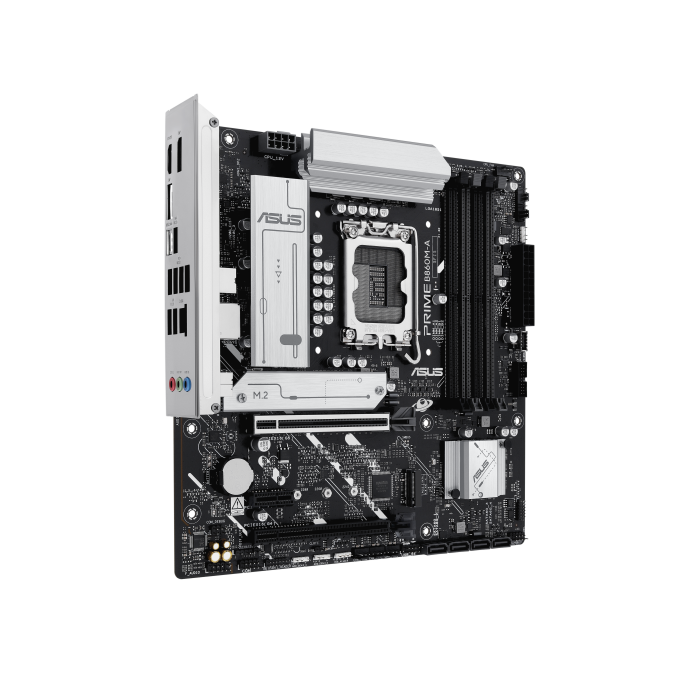

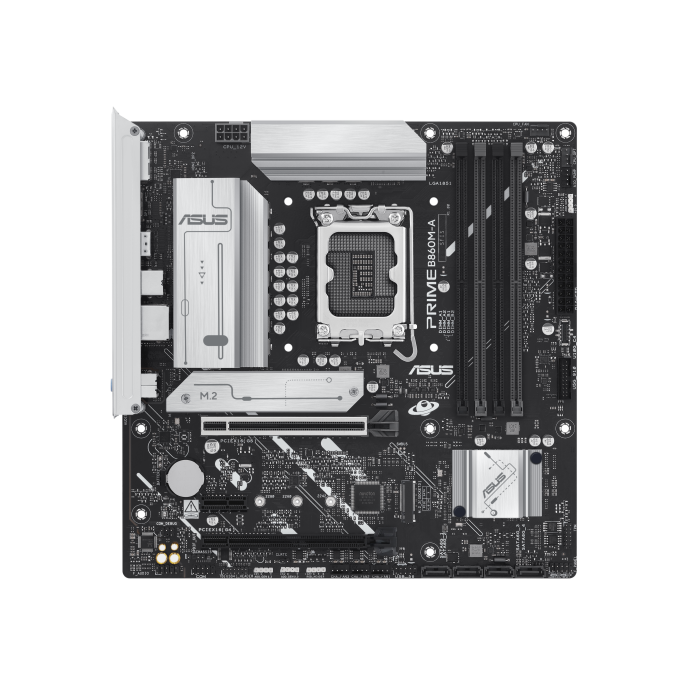

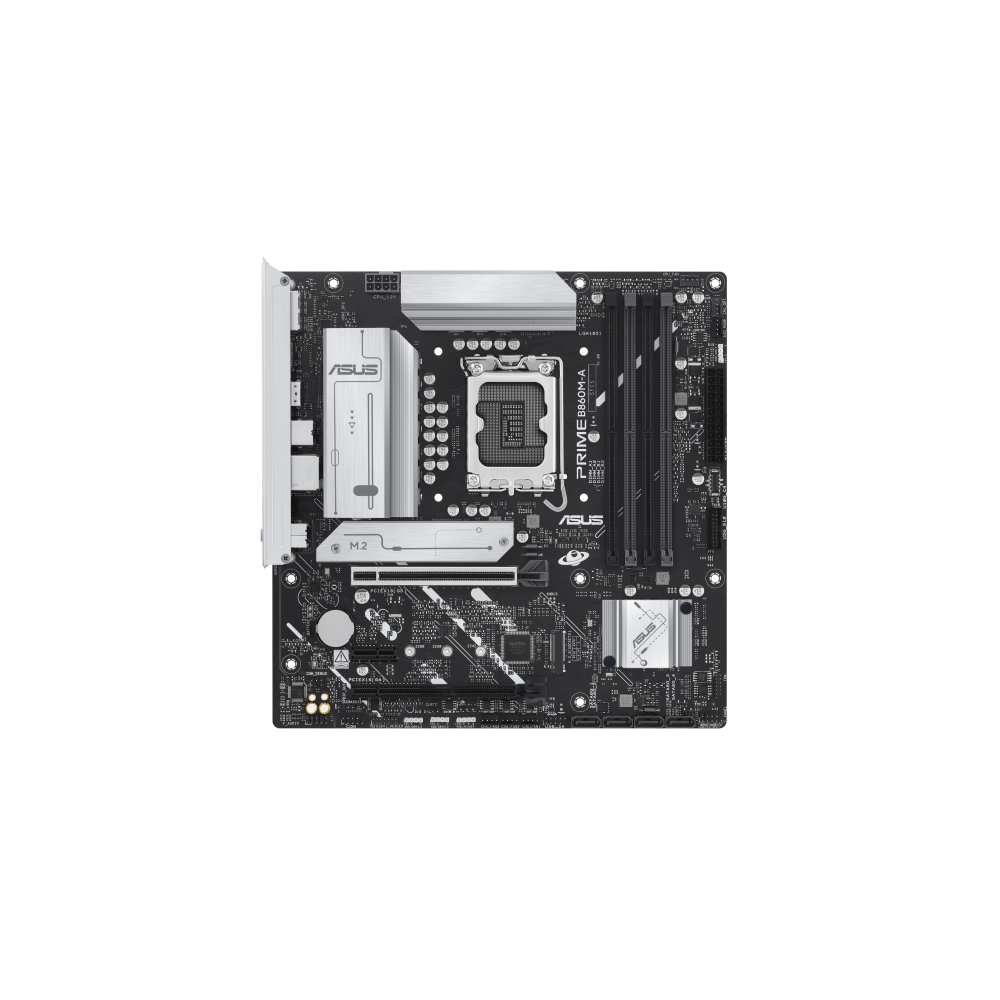

Scheda Madre Asus PRIME B860M-A-CSM 90MB1K00-M0EAYC
Tipo di interfaccia Ethernet | 2.5 Gigabit Ethernet |
Connettore uscita S/PDIF | Sì |
Tipi di unità di archiviazione supportate | HDD & SSD |
Connettori USB 2.0 | 1 |
Componente per | PC |
Connettori USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
Porte Thunderbolt | 1 |
Slot PCI Express x1 (Gen 4.x) | 1 |
Connettore pannello audio frontale | Sì |
Processori compatibili | Intel Core Ultra (Series 2) |
Profondità imballo | 275 mm |
Quantità porte HDMI | 1 |
Peso | 815 g |
Connettore di potenza EPS (8-Pin) | Sì |
Ingresso di linea | Sì |
Chipset scheda madre | Intel B860 |
Sistema audio | 7.1 canali |
Velocità di clock della memoria supportata (max) | 8666 MHz |
Famiglia di chipset per scheda madre | Intel |
Slot PCI Express x16 (Gen 4.x) | 1 |
Quantità di porte USB 3.2 Gen 2x2 Tipo C | 1 |
Dimensione memoria BIOS | 256 Mbit |
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A | 1 |
Canali di memoria | Dual-channel |
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo C | 0 |
Fattore di forma scheda madre | micro ATX |
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo C | 0 |
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A | 2 |
tipo di slot di memoria | DIMM |
Quantità porte USB 2.0 | 4 |
Profondità | 244 mm |
Connettore ATX (24-PIN) | Sì |
Numero di connettori COM | 1 |
Numero di connettori della ventola della CPU | 1 |
RAM massima supportata | 256 GB |
Tecnologia di processo parallela | Non supportato |
Larghezza imballo | 275 mm |
Quantità porte VGA (D-Sub) | 0 |
Quantità porte DVI-D | 0 |
Quantità porte Ethernet LAN (RJ-45) | 1 |
Numero di connettori ventola chassis | 3 |
Connettore d'intrusione del telaio | Sì |
Collegamento ethernet LAN | Sì |
Produttore processore | Intel |
Connettore con potenza 12V | Sì |
Numero di hard drive supportati | 4 |
Connettore ventola CPU | Sì |
Tipi di memoria supportati | DDR5-SDRAM |
Sistema operativo Windows supportato | Windows 10 x64, Windows 11 |
Quantità DisplayPorts | 2 |
Colore del prodotto | Multicolore |
Tipo BIOS | UEFI AMI |
Wi-Fi | No |
Connettori USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
Numero di slot di memoria | 4 |
Connettore TPM | Sì |
Senza buffer | Sì |
Larghezza | 244 mm |
Compatibilità ECC | Non-ECC |
Interfacce dell'unità di archiviazione supportate | M.2, SATA III |
Presa per processore | LGA 1851 (Socket V1) |
Peso dell'imballo | 1,36 kg |
Numero di connettori SATA III | 4 |
numero di dispositivi di archivio supportati | 6 |
Livelli RAID | 0, 1, 5, 10 |
Altezza | 50 mm |
Microfono, spinotto d'ingresso | Sì |
Supporto RAID | Sì |
Altezza imballo | 67,5 mm |
