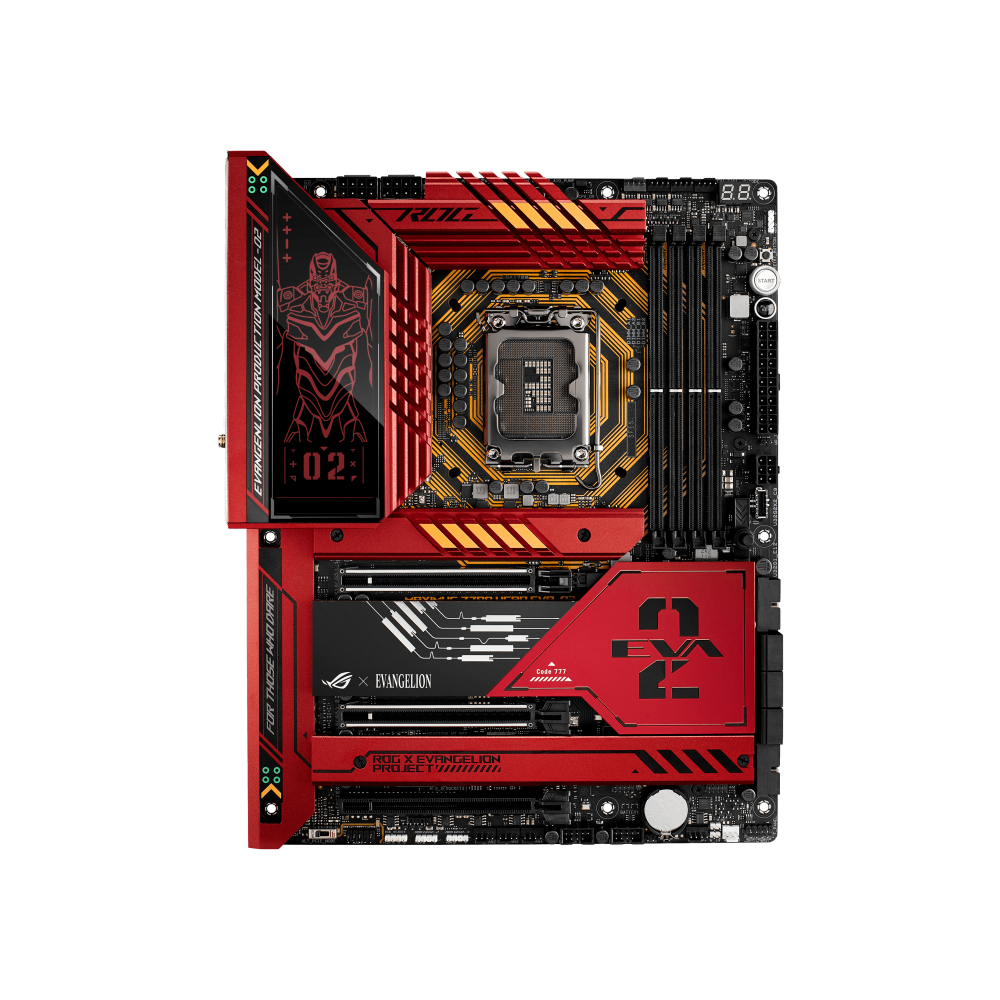

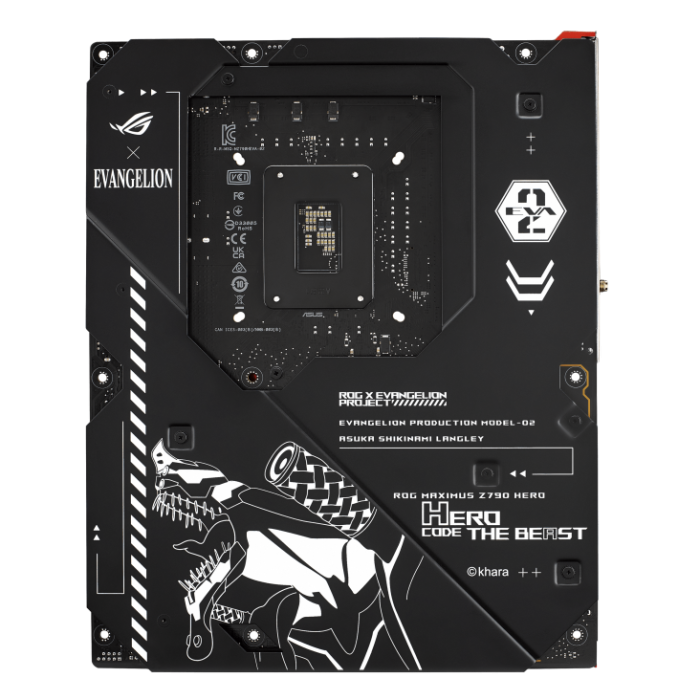

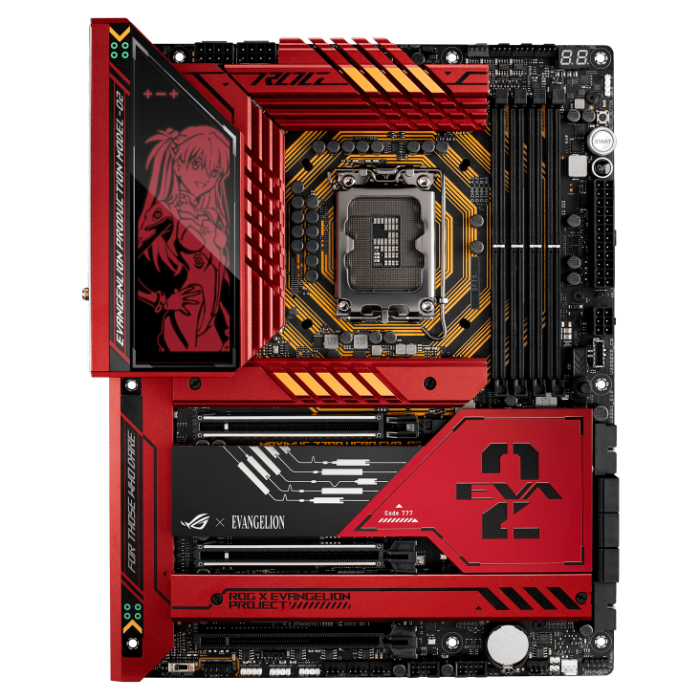

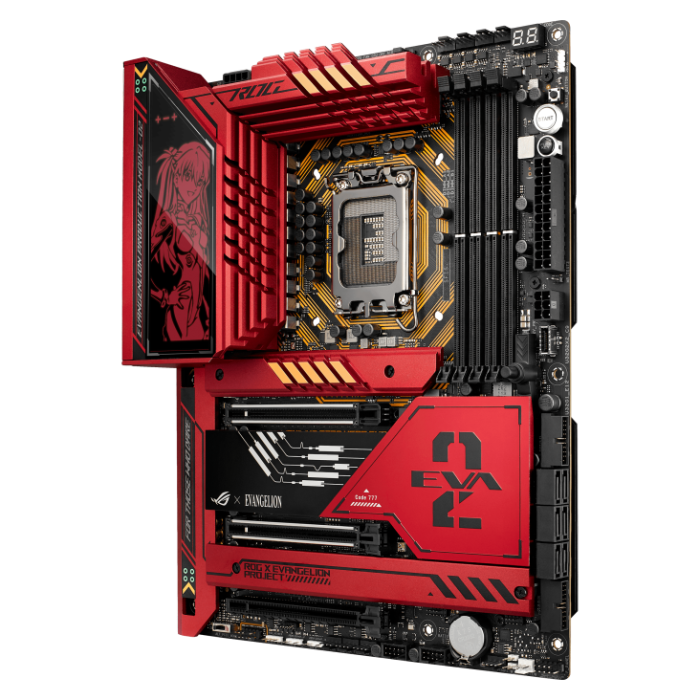

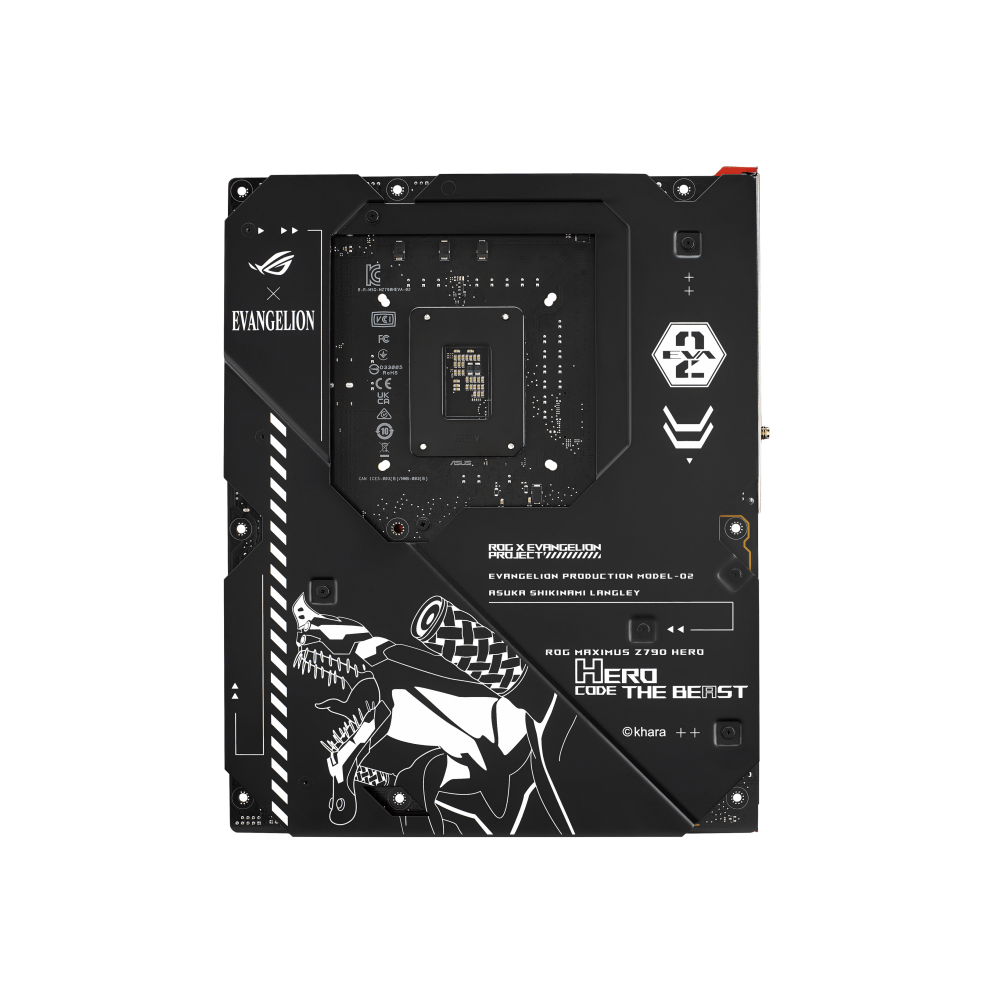

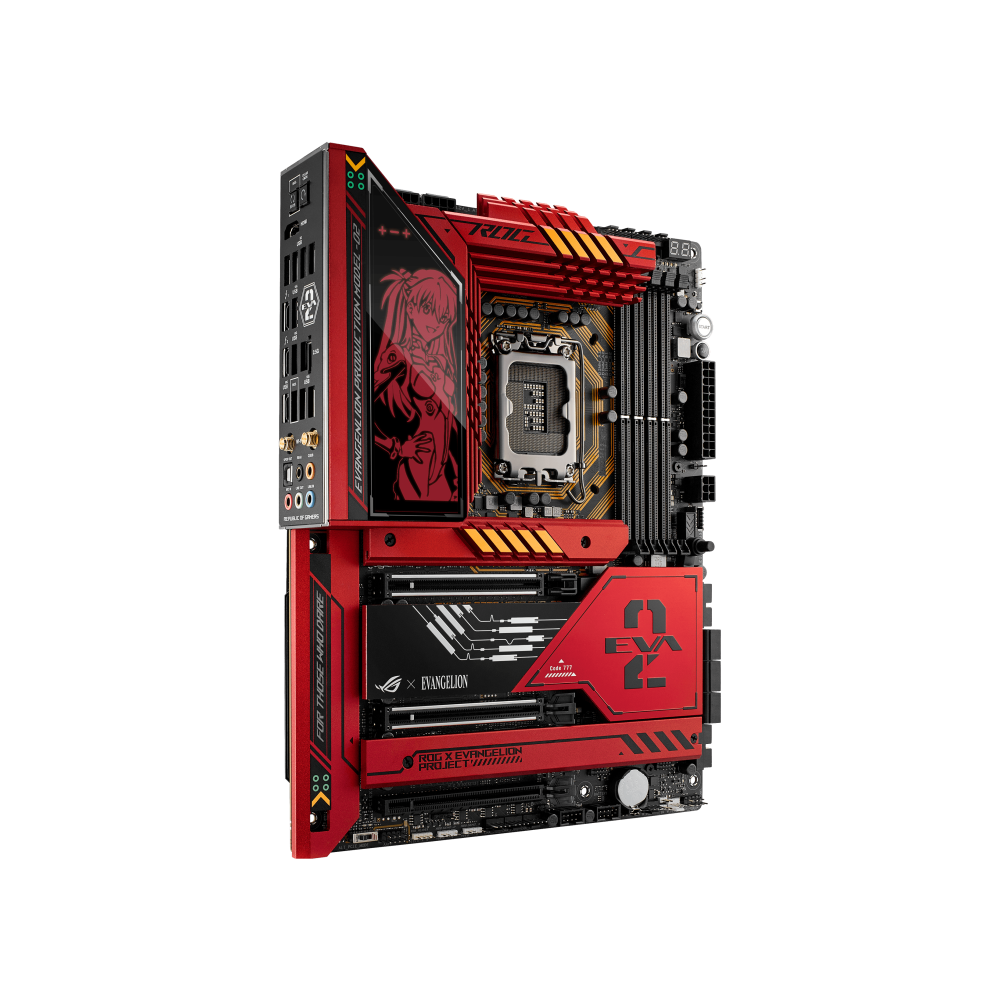

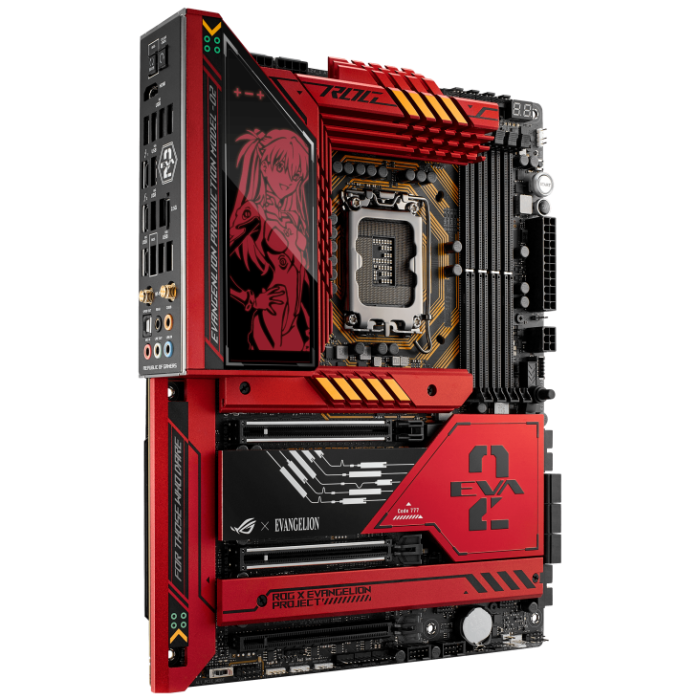

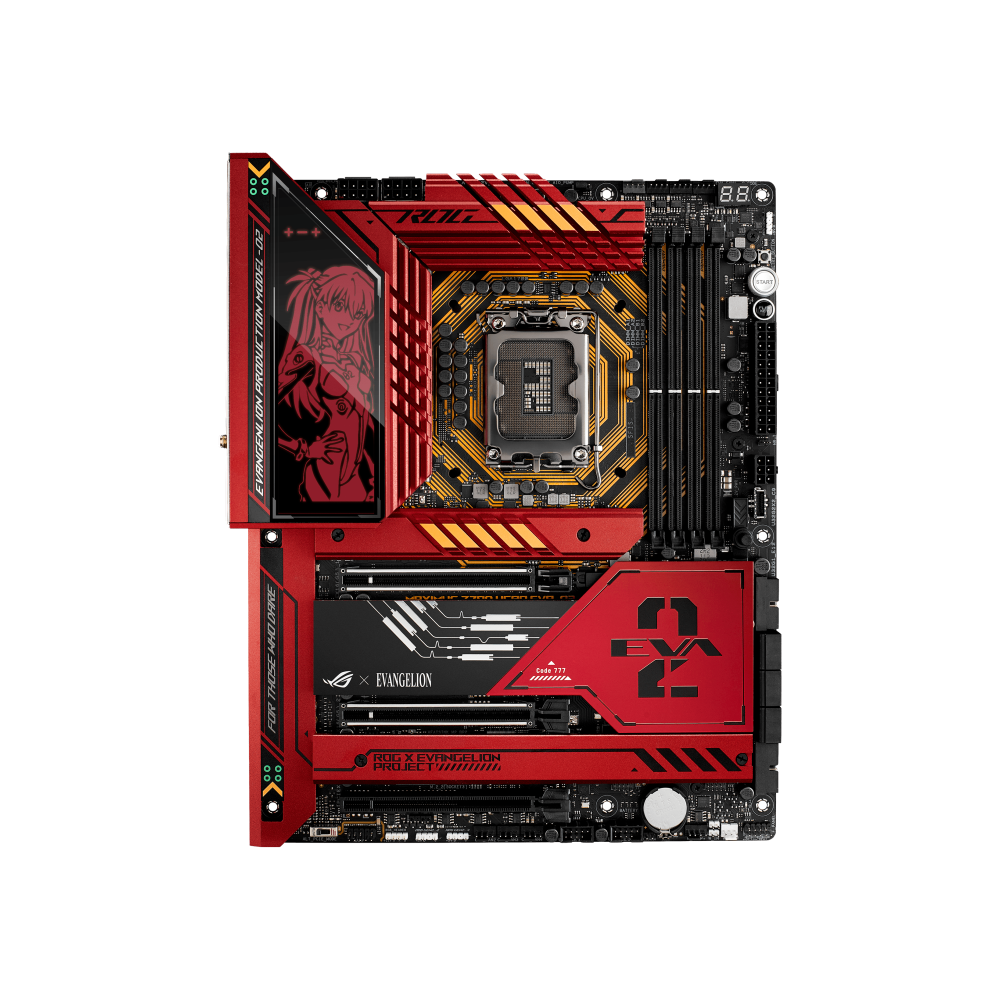

Scheda Madre ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION
Dati Tecnici:
- Formato: ATX (305 x 244 mm)
- Chipset:
Intel Z790 - Socket:
LGA 1700 (per CPU Intel della 12a/13a generazione di core) - RAM:
4x DDR5 (5.600 MHz, fino a 7.800+ MHz tramite OC)
Dual-Channel
Max. 128 GB - Slot (fisici):
2x PCIe 5.0 x16 (chipset x16 o x8/x8)
1x PCIe 4.0 x16 (supporta x4, x4/x4) - Grafica integrata:
1x HDMI 2.1
2x Intel Thunderbolt 4 - Connettori interni:
Slot M.2_1 (M-Key), tipo 2242/2260/2280/22110 (supporta la modalità PCIe 4.0 x4)
Slot Hyper M.2_1 (M-Key) tramite scheda ROG Hyper M.2, tipo 2242/2260/2280/22110 (supporta la modalità PCIe 5.0 x4.)
Slot M.2_2 (M-Key), tipo 2242/2260/2280 (supporta la modalità PCIe 4.0 x4)
Slot M.2_3 (M-Key), tipo 2242/2260/2280 (supporta le modalità PCIe 4.0 x4 e SATA)
Slot Hyper M.2_1 (M-Key) tramite ROG Hyper M Scheda .2, tipo 2242/2260/2280/22110 (supporta la modalità PCIe 4.0 x4)
Slot Hyper M.2_2 (M-Key) tramite scheda ROG Hyper M.2, tipo 2242/2260/2280/22110 (supporta PCIe 4.0 modalità x4)
6x porte SATA 6Gb/s
3x slot M.2 (M-Key)
1x connettore USB 3.2 Gen 2x2 (supporta USB Type-C ®) 2x connettori USB 3.2 Gen 1 supportano ulteriori 4 porte USB 3.2 Gen 1
2x connettori USB 2.0 supportano ulteriori 4 Porte USB 2.0
3x connettori Gen 2 indirizzabili
1x connettore AURA RGB
1x pulsante FlexKey
1x connettore audio pannello anteriore (AAFP)
1x pulsante di avvio
1x pulsante ReTry
1x connettore pannello di sistema a 10-1 pin
1x connessione sensore termico
1x CPU Jumper
1x connettore modalità PCIe alternativo - Connettori ventole:
1x CPU a 4 pin
1x CPU a 4 pin OPT
1x Connettore pompa AIO a 4 pin
4x Ventole case 4 pin
1x W_PUMP+
1x connettore Water-In a 2 pin
1x connettore Water-Out a 2 pin

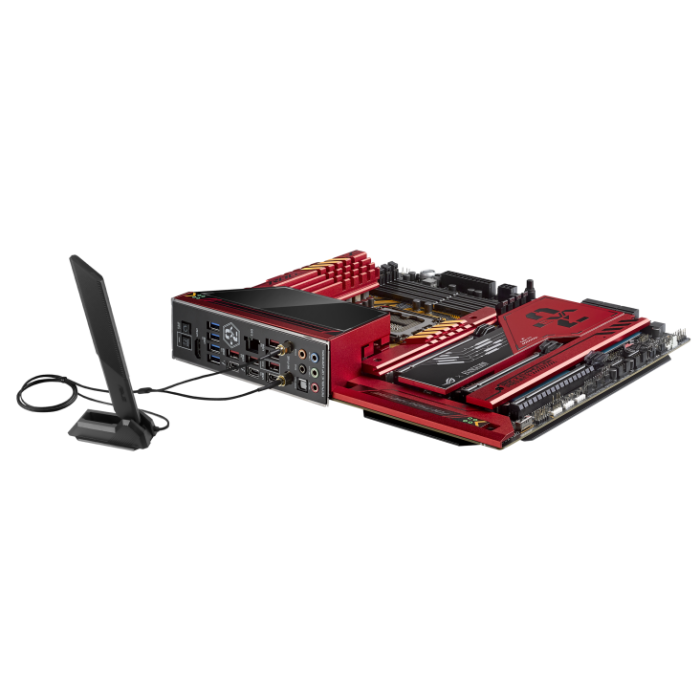

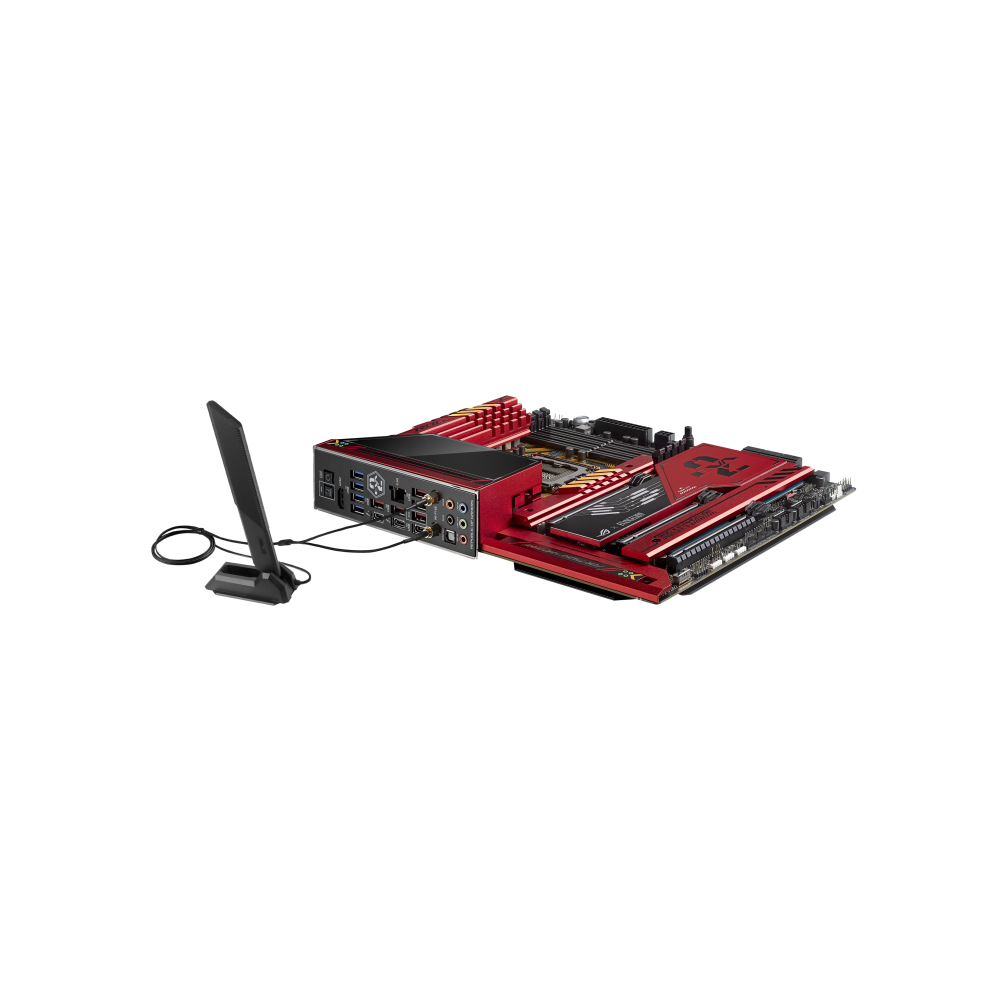

1x connettore Water Flow a 3 pin - Pannello I/O:
2x porte Thunderbolt™ 4 USB Type-C ®
6x porte USB 3.2 Gen 2 (5 porte Type-A + 1 x USB Type-C ®)
4x porte USB 3.2 Gen 1 (4 x Type-A)
1x HDMI ®
1x modulo Wi-Fi (2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supporta banda di frequenza 2,4/5/6 GHz e Bluetooth ® v5.3
1x porta Ethernet Intel ® 2,5 Gb
5x jack audio (ROG SupremeFX 7.1 Surround Sound Audio ad alta definizione CODEC ALC4082)
1x uscita ottica S/PDIF
1x pulsante BIOS FlashBack™ 1x pulsante Clear CMOS - Alimentazione:
1x ATX a 24 pin
2x ATX/EPS a 8 pin 12V
1x PCIe ATX a 6 pin - Garanzia del produttore: 3 anni
90MB1FL0-M0EAY0
