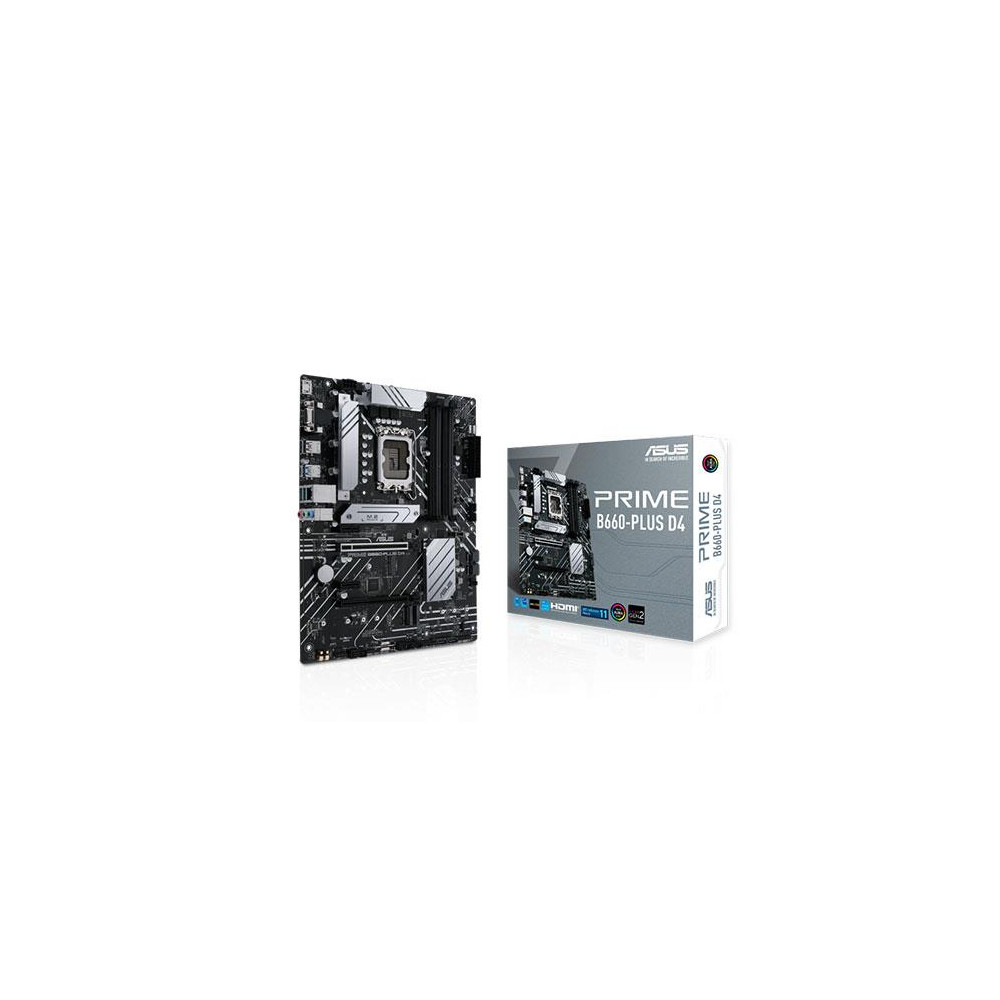

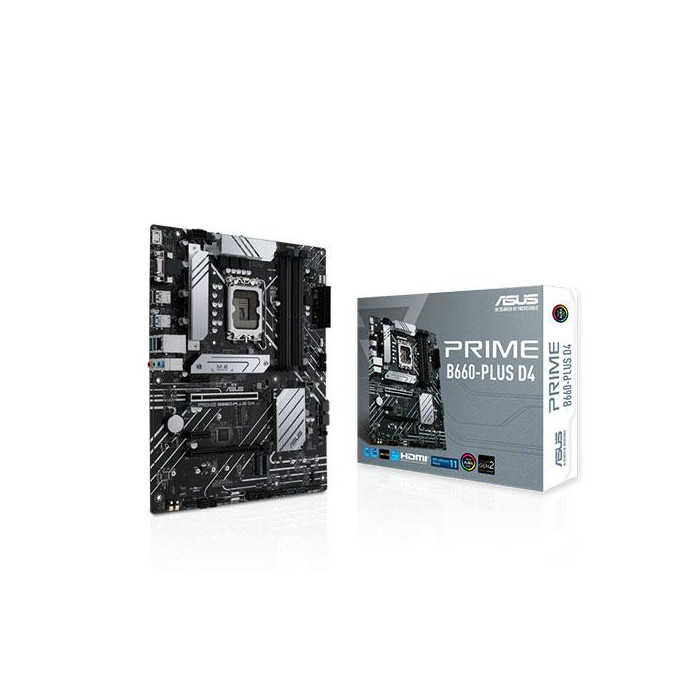

Scheda Madre ASUS PRIME B660-PLUS D4

Scheda tecnica

Processore

Socket: LGA1700 - CPU Supportate: Intel Socket 1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors -

Chipset

Intel

Slot Memoria

4DDR4 (Dual channel) - Massima supportata: 128GB - Frequenza: 5000(OC), 4800(OC), 4600(OC), 4400(OC), 4266(OC), 4000(OC), 3733(OC), 3600(OC), 3466(OC), 3333(OC), 3200(OC), 2933, 2800, 2666, 2400, 2133 -

Connettività

Realtek 2.5G -Wi-Fi E Key only

Audio

7.1 Channel(HD) - Codec: Realtek Audio Codec -

Porte e Connessioni

Thunderbolt: 1 x Thunderbolt 4 header - USB 3.2 Gen 2x2: 1 (1@back, 1 x Type-C) - USB 3.2 Gen 2: 2 (2@back, 2 x Type-A) - USB 3.2 Gen 1: 4 (1@back - 3@front, 2 x Type-A + 1 x Type-C) - USB 2.0: 6 (2@back, 2 x Type-A - 4@front)

Altri Dettagli

ASUS CrashFree BIOS 3 -AURA Sync -Armoury Crate -Stylish Heat-sink -TurboV EVO -DIGI+ VRM -AI Suite3 -UEFI BIOS -Fan Xpert 2+ -EZ Flash 3 -ASUS 5X protection III

Formato

ATX

Slot VGA

1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4) -

Supporto HDD

4 x SATA 6Gb/s (RAID0,1,5,10)
