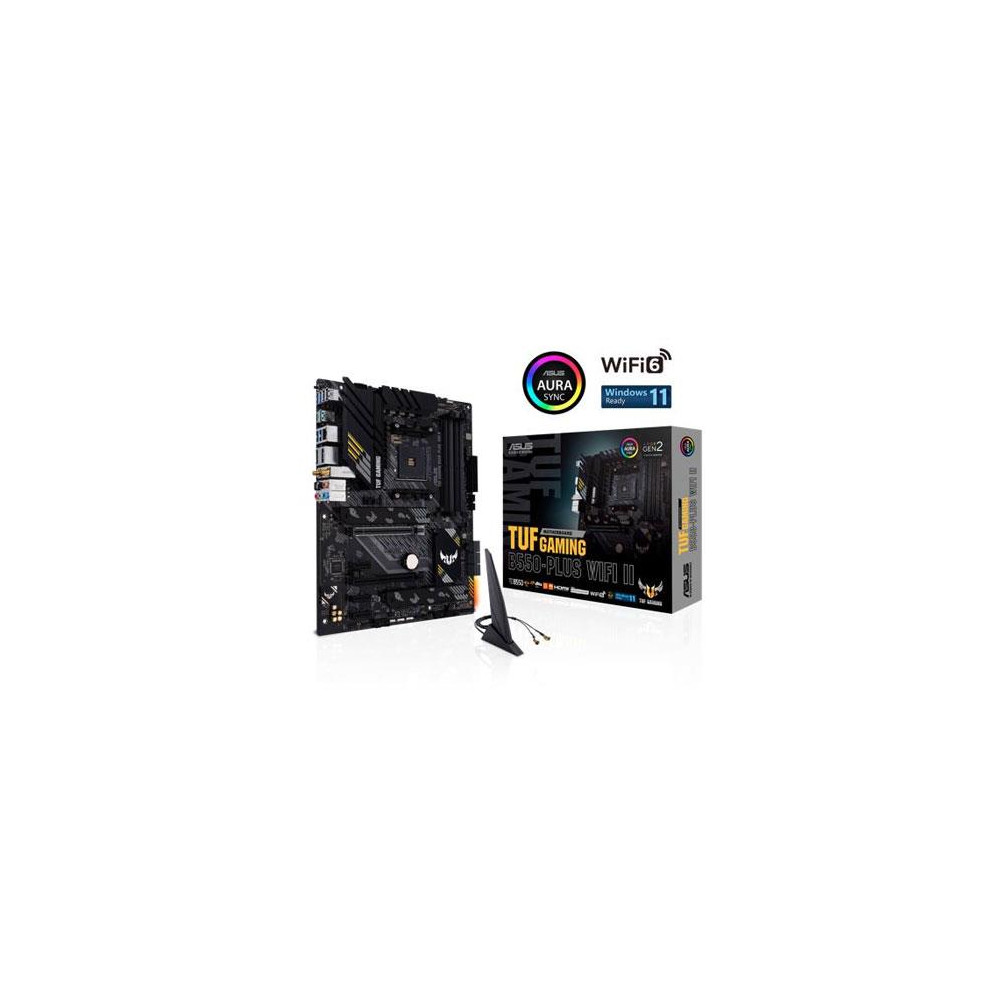

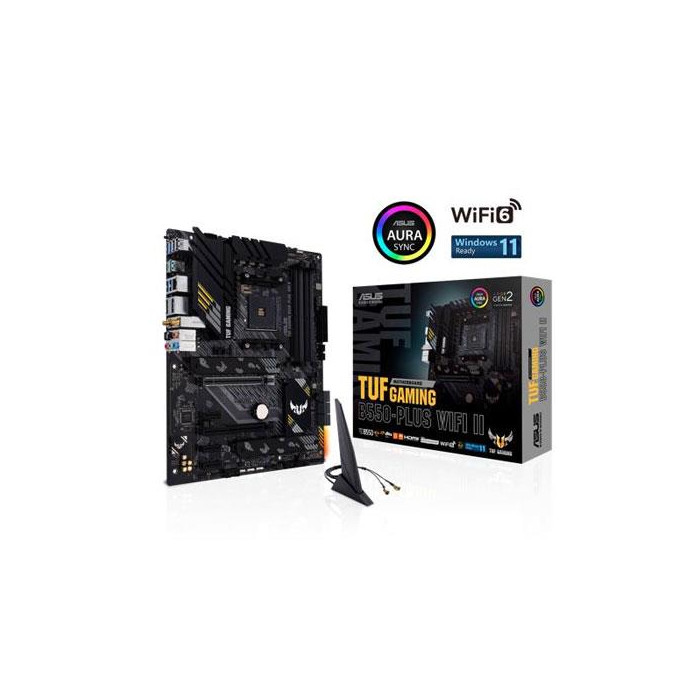

Scheda Madre ASUS TUF GAMING B550-PLUS WIFI II
Processore
Socket: Socket AM4
CPU Supportate: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
AMD
Slot Memoria
4DDR4 (Dual channel)
Massima supportata: 128GB
Frequenza: 4866(OC), 4800(OC), 4600(OC), 4466(OC), 4400(OC), 4333(OC), 4266(OC), 4200(OC), 4133(OC), 4000(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3200, 3000, 2933, 2800, 2666, 2400, 2133
Supporto ECCFormato
ATX
Porta Seriale
1 header (w/o cable)
M2
2 x M.2 socket 3 Key M (1 x type 2242-22110,PCIe 4.0x4 & SATA + 1 x type 2242-22110,PCIe 3.0x4 & SATA)
Audio
7.1 Channel(HD)
Codec: ALC887/897
Connettività
1 x Realtek 2.5Gb Ethernet
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
Slot VGA
1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Supporto HDD
6 x SATA 6Gb/s (RAID 0,1,10)
Porte USB
Thunderbolt: 1 x TB Header (for add-on TB card)
USB 3.2 Gen 2x2: 0
USB 3.2 Gen 2: 2 (2@back, 1 x Type-A + 1 x Type-C)
USB 3.2 Gen 1: 6 (4@back, 4 x Type-A
2@front)
USB 2.0: USB 2.0: 6 (2@back, 2 x Type-A
4@front)
USB 3.2 Gen 2x2: 0
USB 3.2 Gen 2: 2 (2@back, 1 x Type-A + 1 x Type-C)
USB 3.2 Gen 1: 6 (4@back, 4 x Type-A
2@front)
USB 2.0: USB 2.0: 6 (2@back, 2 x Type-A
4@front)
Altri Dettagli
Aura Sync
BIOS Flashback
BIOS Flashback
90MB19U0-M0EAY0
