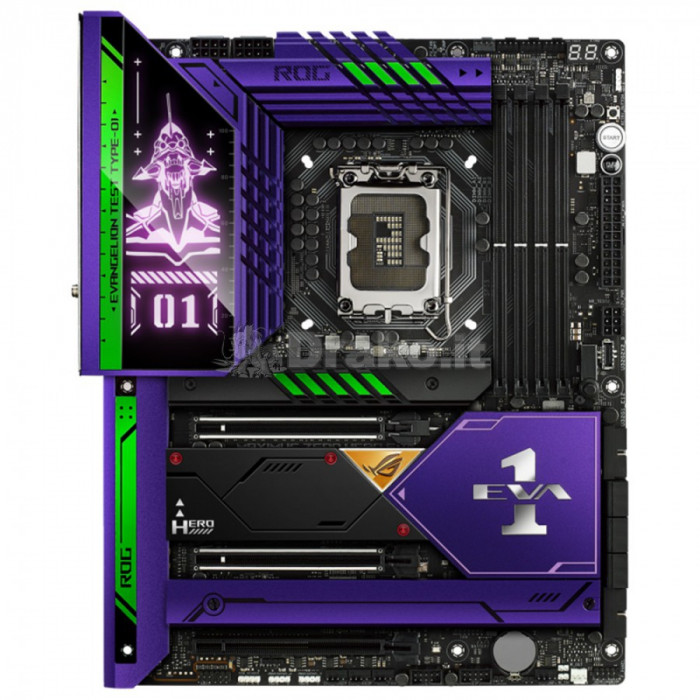

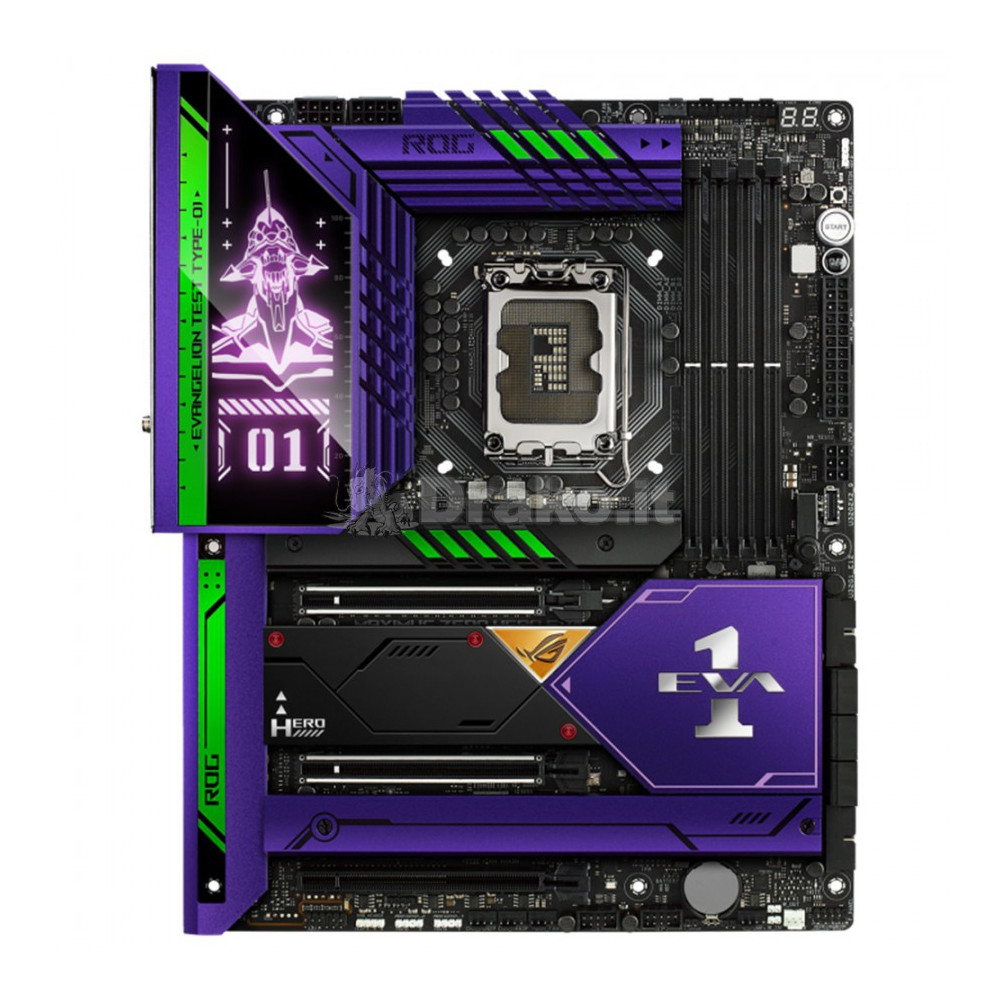

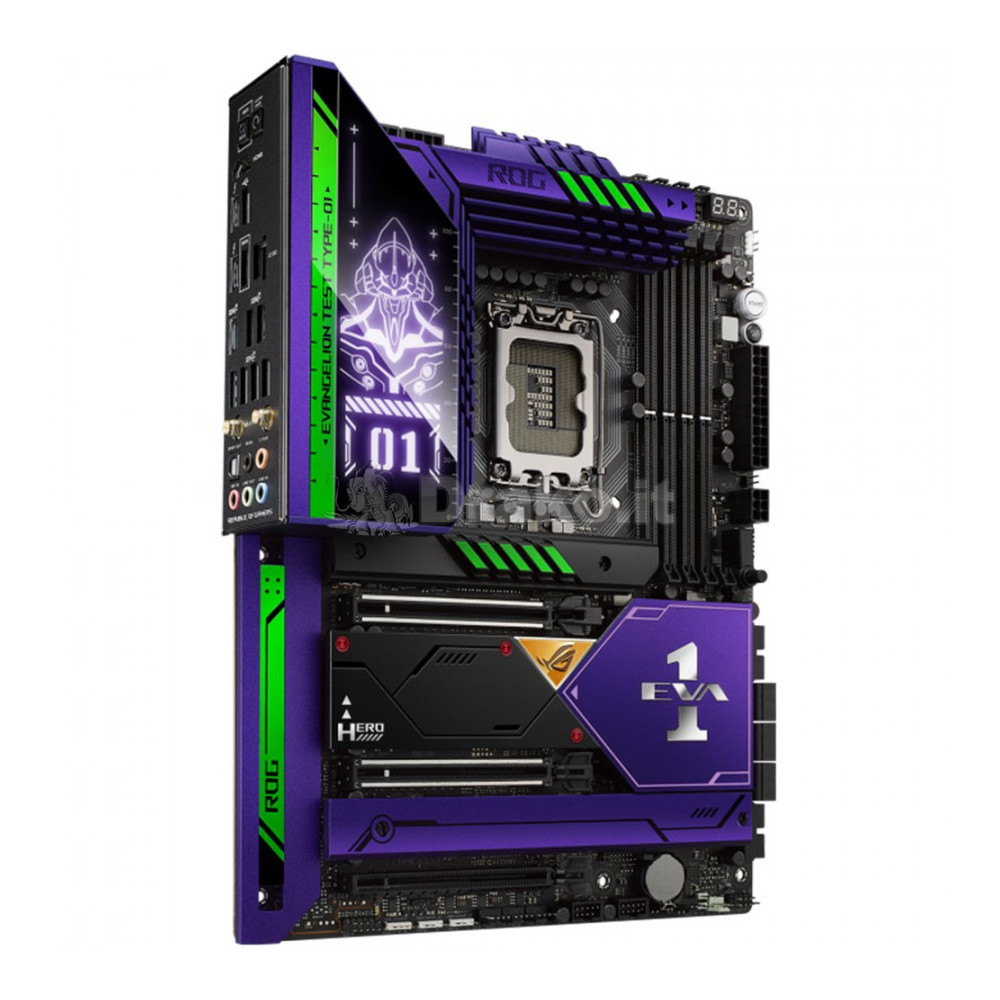

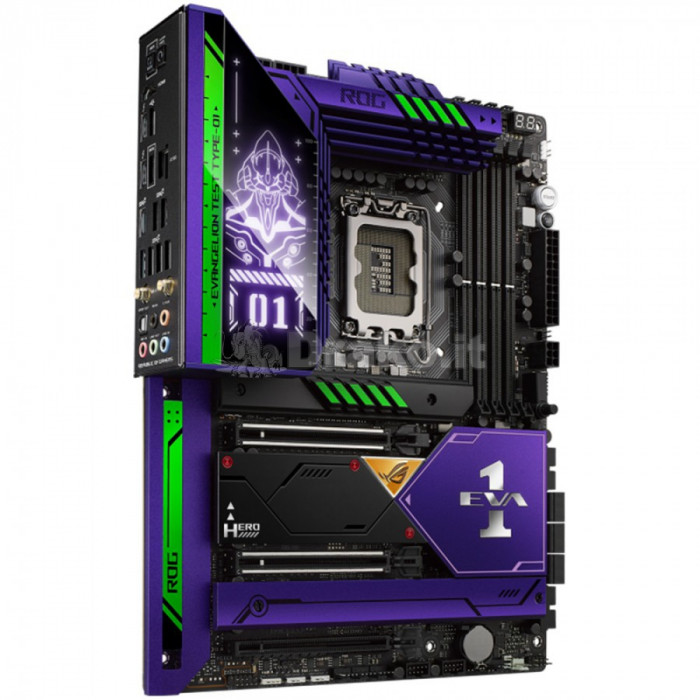

Scheda Madre ASUS ROG MAXIMUS Z690 HERO Evangelion
90MB1BX0-M0EAY0
Scheda tecnica
- Processore
- Socket: LGA1700 - CPU Supportate: Intel Socket 1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors -
- Chipset
- Intel
- Slot Memoria
- 4DDR5 (Dual Channel) - Massima supportata: 128GB - Frequenza: 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800 -
- Connettività
- LAN: 1 x Intel I225-V 2.5G Ethernet - WLan: Intel Wi-Fi 6E
- Audio
- 8-CH(HD) with ROG SupremeFX & DTS unbound - Codec: ALC4082 -
- Porte e Connessioni
- USB 3.2 Gen 2x2: 1 ([email protected], 1 x Type-C) - USB 3.2 Gen 2: 7 ([email protected], 6 x Type-A + 1 x Type-C) - USB 3.2 Gen 1: 4 ([email protected]) - USB 2.0: 6 ([email protected], 2 x Type-A - [email protected]) - Thunderbolt: 2 x Thunderbolt 4 (onboard)
- Altri Dettagli
- AURA Sync -Armoury Crate -FlexKey -Q-Connector -Dual Intelligent Processors 5 with 5-Way Optimization with AI Overclocking -USB BIOS Flashback -Fan Xpert 4 -MyAsus
- Formato
- ATX
- Slot VGA
- 2 x PCIe 5.0 x16 (x16, x8/x8) + 1 x PCIe 4.0 x16 (x4 or x4/x4) -
- Supporto HDD
- 6 x SATA 6Gb/s
