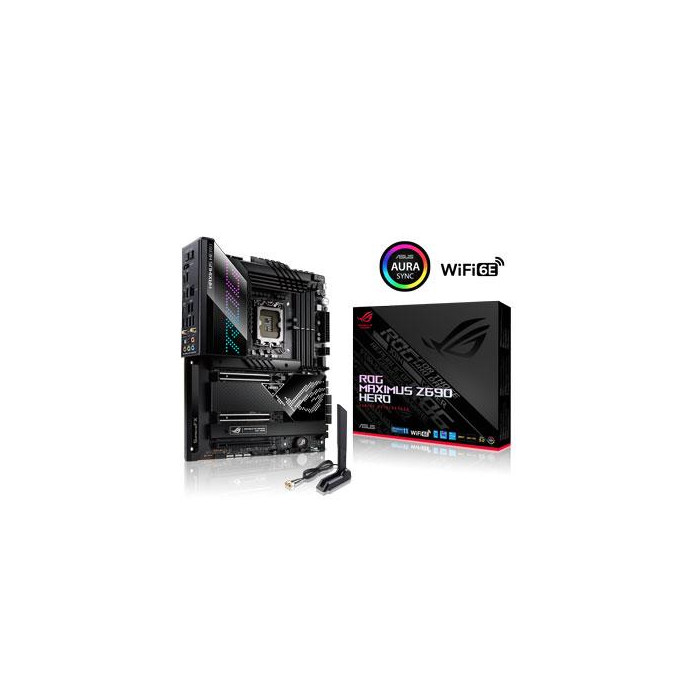

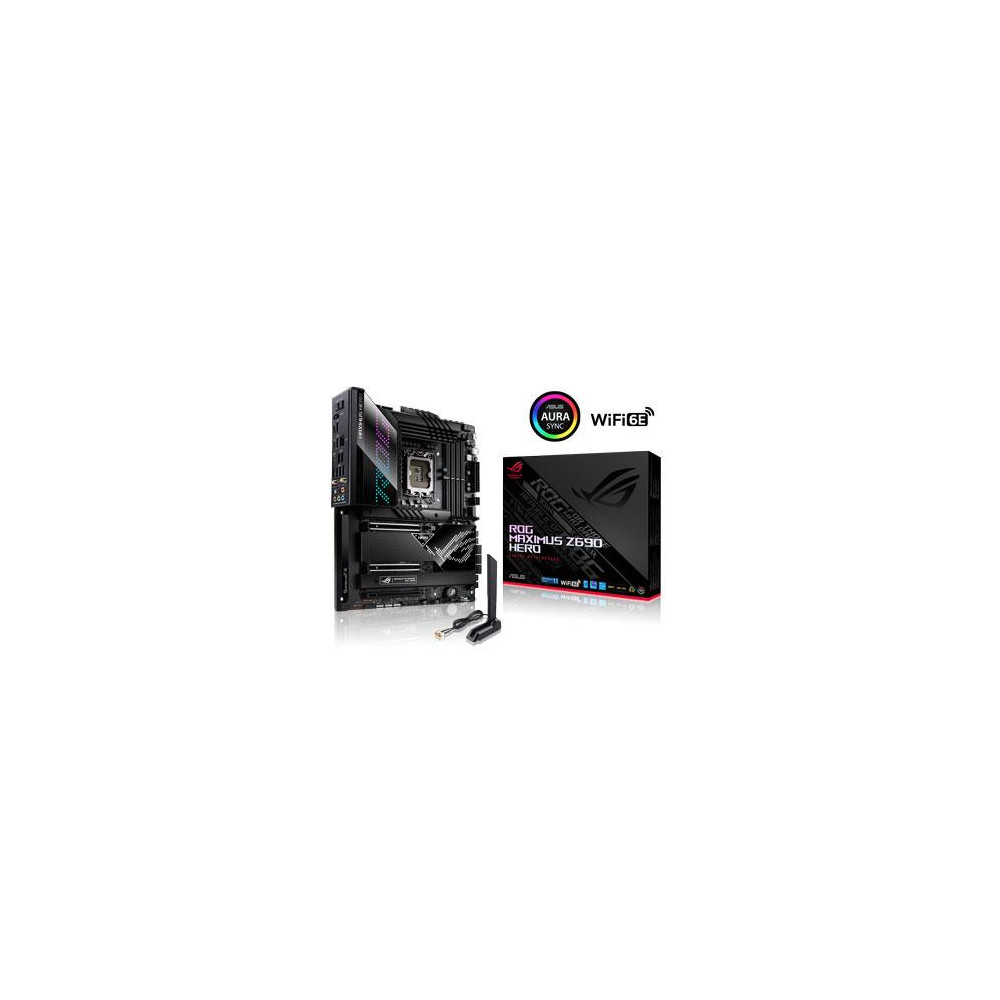

Scheda Madre ASUS ROG MAXIMUS Z690 HERO

Scheda tecnica

Processore

Socket: LGA1700 - CPU Supportate: Intel Socket 1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors -

Chipset

Intel

Slot Memoria

4DDR5 (Dual Channel) - Massima supportata: 128GB - Frequenza: 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800 -

Connettività

LAN: 1 x Intel I225-V 2.5G Ethernet - WLan: Intel Wi-Fi 6E

Audio

8-CH(HD) with ROG SupremeFX & DTS unbound - Codec: ALC4082 -

Porte e Connessioni

USB 3.2 Gen 2x2: 1 (1@front, 1 x Type-C) - USB 3.2 Gen 2: 7 (7@back, 6 x Type-A + 1 x Type-C) - USB 3.2 Gen 1: 4 (4@front) - USB 2.0: 6 (2@back, 2 x Type-A - 4@front) - Thunderbolt: 2 x Thunderbolt 4 (onboard)

Altri Dettagli

AURA Sync -Armoury Crate -FlexKey -Q-Connector -Dual Intelligent Processors 5 with 5-Way Optimization with AI Overclocking -USB BIOS Flashback -Fan Xpert 4 -MyAsus

Formato

ATX

Slot VGA

2 x PCIe 5.0 x16 (x16, x8/x8) + 1 x PCIe 4.0 x16 (x4 or x4/x4) -

Supporto HDD

6 x SATA 6Gb/s
