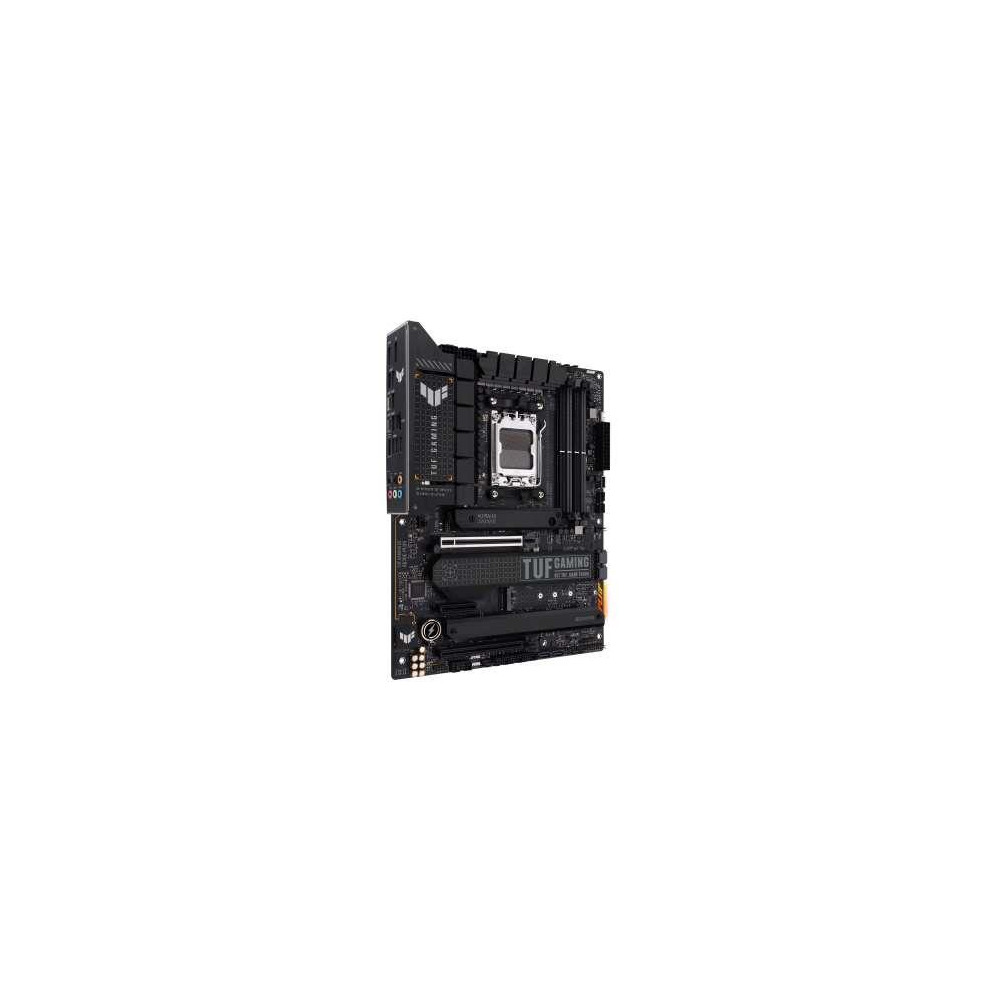

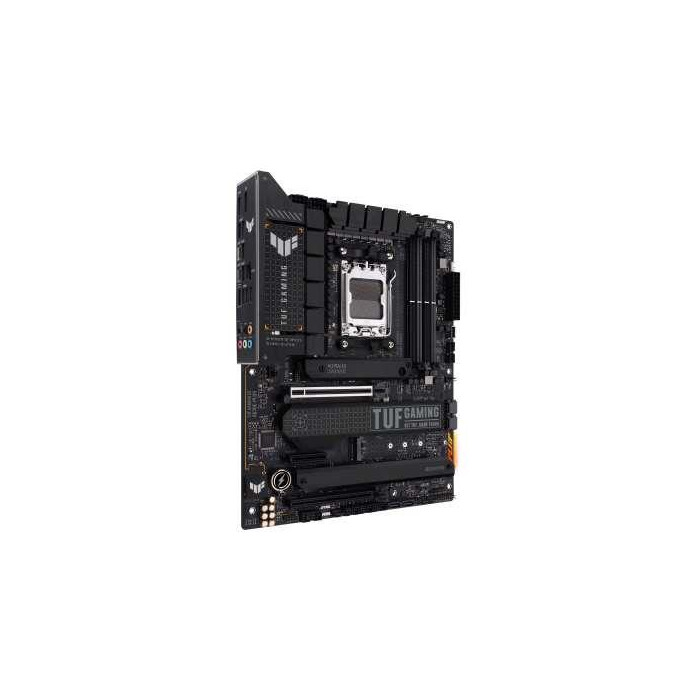

Scheda Madre ASUS TUF GAMING X670E-PLUS
Processore
Socket: AM5
CPU Supportate: AMD Ryzen™ 7000 Series Desktop Processors
Chipset
AMD
Slot Memoria
4DDR5 (Dual Channel)
Massima supportata: 128GB
Frequenza: 6400+(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200, 5000, 4800
Supporto ECCFormato
ATX
Porta Seriale
1 header (w/o cable)
M2
4 x M.2 socket 3 Key M (1 x type 2242-2280, PCIe 5.0 x4 + 2 x type 2242-2280, PCIe 4.0 x4 + 1 x type 2242-22110, PCIe 3.0 x4 & SATA)
Audio
7.1 Channel(HD)
Codec: ALC S1220A
Connettività
LAN: 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Lan: 2x2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) + BT5.2
ASUS LANGuard
Wireless Lan: 2x2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) + BT5.2
Slot VGA
1 x PCIe 5.0 x16 + 1 x PCIe 4.0 x16 (max. x4)
Supporto HDD
4 x SATA 6Gb/s
Porte USB
Thunderbolt™ (USB4®): 1 x Thunderbolt™ (USB4®) header for add-on card support
USB 3.2 Gen 2x2: 1 (1@back, 1 x Type-C)
USB 3.2 Gen 2: 5 (4@back, 3 x Type-A + 1 x Type-C
1@front, Type-C)
USB 3.2 Gen 1: 7 (5@back, 5 x Type-A
2@front)
USB 2.0: 6 (6@front)
USB 3.2 Gen 2x2: 1 (1@back, 1 x Type-C)
USB 3.2 Gen 2: 5 (4@back, 3 x Type-A + 1 x Type-C
1@front, Type-C)
USB 3.2 Gen 1: 7 (5@back, 5 x Type-A
2@front)
USB 2.0: 6 (6@front)
Altri Dettagli
Aura Sync
BIOS Flashback
Lighting Control
Pre-mounted IO shield
BIOS Flashback
Lighting Control
Pre-mounted IO shield
90MB1BJ0-M0EAY0
